Description
Air intake or exhaust grilles made of sturdy aluminum profile with overpressure damper.
The fixed fins are inclined at 45° with a 50 mm pitch.
Characteristics
Material: aluminum.
Finish: natural anodized.
Installation: fastening by means of front screws. For greater flexibility of installation, the grilles are supplied without screw holes.
Use
Grille suitable for air intake.
Models

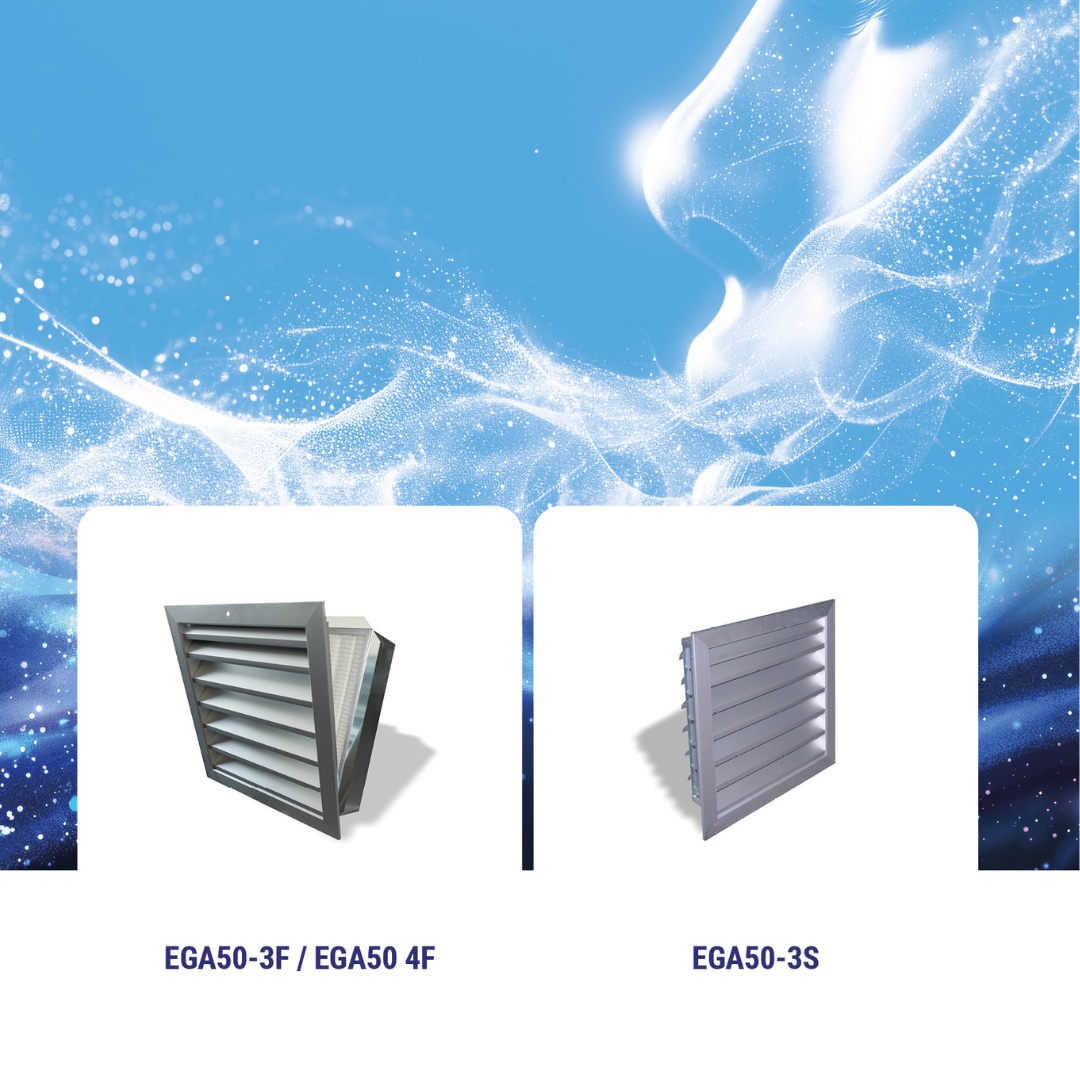

EGA50-3F: 50 mm pitch aluminium intake grilles with special subframe fixed with hinges to the grill frame to allow easy maintenance of the filter. 48 mm thick filter (EXCLUDED, TO BE ORDERED SEPARATELY).
EGA50-4F: 50 mm pitch aluminium intake grilles with damper and special subframe fixed with hinges to the grill frame to allow easy maintenance of the filter. 48 mm thick filter and SC regulation damper (FILTER EXCLUDED, TO BE ORDERED SEPARATELY).
|
|
Description
Air intake or exhaust grilles made of sturdy aluminum profile with overpressure damper.
The fixed fins are inclined at 45° with a 50 mm pitch.
Characteristics
Material: aluminum.
Finish: natural anodized.
Installation: fastening by means of front screws. For greater flexibility of installation, the grilles are supplied without screw holes.
Use
Grille suitable for air intake or expulsion.
Models
EGA50-3SA: 50 mm pitch aluminium intake grilles with overpressure damper.
EGA50-3SE: 50 mm pitch aluminium exhaust grilles with overpressure damper.
|
