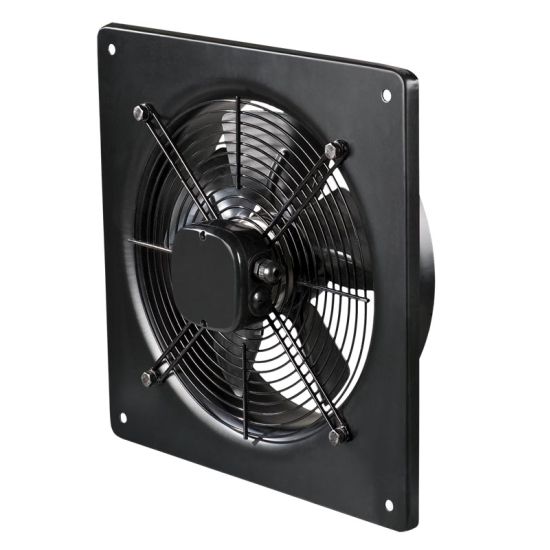

EVOV Helicoidal wall fans ø 250 to 630

Description

Helicoidal wall fans with square painted panel and external rotor single phase motor.

Characteristics

Material : painted steel panel.
Black Colour.
Installation : Wall.
Degree of protection : IP 24.

use

- Air flow rates from 200 to 12.000 m³/h;
- Static pressure up to 90 Pa.

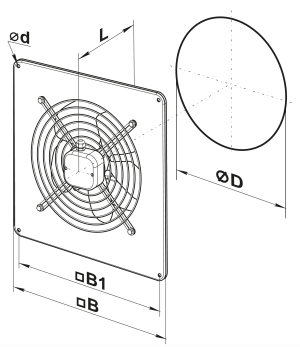

dimensions

all measurements are in mm

Models	ØD	Ød	B	B1	L	peso kg
EVOV 4P 250	260	7	370	320	155	4,1
EVOV 4P 300	326	9	430	380	195	5,1
EVOV 4P 350	388	9	485	435	200	7,1
EVOV 4P 400	417	9	540	490	240	8,8
EVOV 4P 450	465	11	576	535	250	10,6
EVOV 4P 500	520	11	655	615	260	14,2
EVOV 4P 550	570	11	725	675	280	16,6
EVOV 4P 630	650	11	800	710	295	22,6

Operating data and price list

dB (A ) : noise index

Models	giri	Power input		°C max	dB(A) a 3 m	Pressione statica Pa				euro
Models	giri	W	A	°C max	dB(A) a 3 m	0	30	60	90	euro
EVOV 4P 250	1380	50	0,22	60	55	800	550	230	-	255,76
EVOV 4P 300	1350	75	0,35	60	58	1300	1200	800	500	286,33
EVOV 4P 350	1380	140	0,65	60	62	2500	2200	1750	1250	342,88
EVOV 4P 400	1380	180	0,82	60	63	3500	3000	2500	1300	394,24
EVOV 4P 450	1350	250	1,20	60	64	4700	4300	3900	3000	428,06
EVOV 4P 500	1300	420	1,95	60	69	7000	6500	6000	5300	552,97
EVOV 4P 550	1300	550	2,55	60	70	8800	8000	7700	6900	667,09
EVOV 4P 630	1360	750	3,5	60	75	12000	11000	10000	9000	824,80

Speed control

Models	regolatore di velocità	euro
Models	regolatore di velocità	euro
EVOV 4P 250	RCS 300	104,40
EVOV 4P 300	RCS 300	104,40
EVOV 4P 350	RCS 300	104,40
EVOV 4P 400	RCS 300	104,40
EVOV 4P 450	RCS 300	104,40
EVOV 4P 500	RCS 600	129,60
EVOV 4P 550	RCS 600	129,60
EVOV 4P 630	RCS 900	154,80
