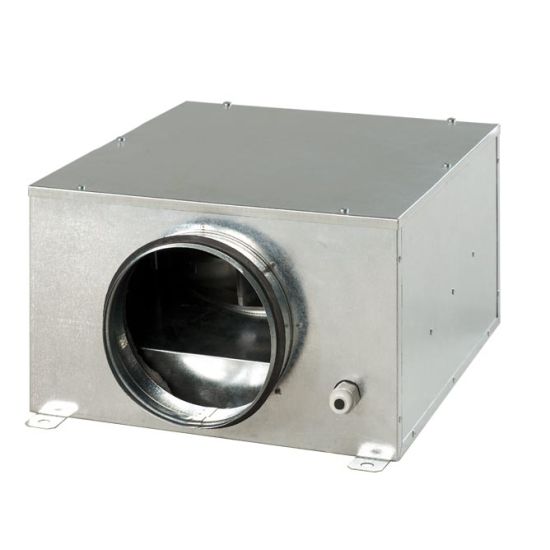

EVKSB Inline fan box
Description
Fan box with circular spigots with diameter from 100 to 315 mm and adjustable external 230V rotor motor.
Characteristics
Galvanized steel structure, insulated inside with a sound absorbing mat.
use
Outlet and inlet of clean air or lightly dust .
Flow rates from 50 to 2150 m³/h and pressures up to 400 Pa .
Flow rates from 50 to 2150 m³/h and pressures up to 400 Pa .
Accessories
Speed regulators RCS 300 .
Operating data
| Models | Alimentazione | potenza W | assorbimento A | Protection rating | temperatura flusso aria | dB(A) a 3mt | giri | |
| minima °C | massima °C | |||||||
| 100 | 230V-1F-50Hz | 73 | 0,32 | IPX4 | -25 | +55 | 33 | 2560 |
| 125 | 230V-1F-50Hz | 73 | 0,32 | IPX4 | -25 | +55 | 35 | 2590 |
| 150 | 230V-1F-50Hz | 72 | 0,32 | IPX4 | -25 | +55 | 36 | 2600 |
| 160 | 230V-1F-50Hz | 75 | 0,33 | IPX4 | -25 | +55 | 36 | 2690 |
| 200 | 230V-1F-50Hz | 103 | 0,45 | IPX4 | -25 | +55 | 38 | 2550 |
| 200S | 230V-1F-50Hz | 195 | 0,85 | IPX4 | -25 | +55 | 41 | 2570 |
| 250 | 230V-1F-50Hz | 198 | 0,87 | IPX4 | -25 | +55 | 41 | 2420 |
| 315 | 230V-1F-50Hz | 322 | 1,4 | IPX4 | -25 | +55 | 43 | 2670 |
| Models | portata m3/h | |||||||
| 0 Pa | 50 Pa | 100 Pa | 150 Pa | 200 Pa | 250 Pa | 300 Pa | 400 Pa | |
| 100 | 240 | 225 | 200 | 175 | 140 | 80 | ||
| 125 | 330 | 320 | 300 | 250 | 190 | 110 | ||
| 150 | 420 | 400 | 375 | 310 | 240 | 150 | ||
| 160 | 420 | 400 | 375 | 310 | 240 | 150 | ||
| 200 | 730 | 710 | 650 | 500 | 310 | 200 | 100 | |
| 200S | 950 | 940 | 900 | 850 | 750 | 600 | 480 | 200 |
| 250 | 1300 | 1280 | 1200 | 1100 | 950 | 800 | 600 | 260 |
| 315 | 2150 | 2100 | 2000 | 1850 | 1700 | 1500 | 1250 | 800 |

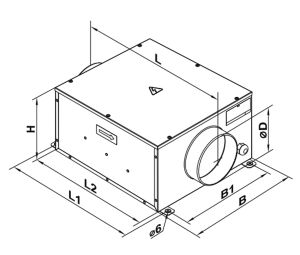

dimensions
all measurements are in mm
| Models | dimensioni | peso | ||||||
| ØD | B | B1 | H | L | L1 | L2 | kg | |
| 100 | 99 | 322 | 280 | 192 | 447 | 380 | 350 | 5,4 |
| 125 | 124 | 322 | 280 | 192 | 447 | 380 | 350 | 5,4 |
| 150 | 149 | 352 | 310 | 212 | 477 | 410 | 380 | 6,4 |
| 160 | 159 | 352 | 310 | 212 | 477 | 410 | 380 | 6,4 |
| 200 | 199 | 432 | 368 | 287 | 588 | 506 | 480 | 10 |
| 200 S | 199 | 432 | 368 | 287 | 588 | 506 | 480 | 12 |
| 250 | 249 | 432 | 368 | 287 | 588 | 506 | 480 | 12,5 |
| 315 | 314 | 502 | 438 | 397 | 648 | 566 | 540 | 15,5 |
Price list
| Models EV KSB | euro |
| 100 | 430,05 |
| 125 | 431,47 |
| 150 | 458,32 |
| 160 | 459,70 |
| 200 | 535,71 |
| 200S | 591,52 |
| 250 | 635,08 |
| 315 | 675,78 |
Speed control
| Models | Euro |
| RCS 300 | 104,40 |
