EVHRC EC Highly efficient decentralized heat recovery unit for flow rates up to 1150 m³/h
Description
Ventilation unit with high flow rate heat recovery for decentralised applications specifically for ventilation in rooms requiring ventilation and air handling, such as schools, commercial environments, offices and small service sector applications. Possibility of installing an electric or water coil as an accessory. Constant flow rate selectable in 3 levels.
Characteristics
-Self-supporting sheet metal frame with polyethylene insulated internal structure.
-High efficiency counter-current cross-flow polypropylene heat exchanger. Low freezing temperatures. Very high heat exchange efficiency.
-Forward-curved Brushless centrifugal fans with electronic motor and modulating control; very high efficiency and low noise levels.
-ePM1 70% filters with low pressure drop for both supply and exhaust, easily removable in both horizontal and vertical configuration.
-Free cooling made inside the unit with large air passage and damper with motorised actuator.
-Electric or water coil.
-High efficiency counter-current cross-flow polypropylene heat exchanger. Low freezing temperatures. Very high heat exchange efficiency.
-Forward-curved Brushless centrifugal fans with electronic motor and modulating control; very high efficiency and low noise levels.
-ePM1 70% filters with low pressure drop for both supply and exhaust, easily removable in both horizontal and vertical configuration.
-Free cooling made inside the unit with large air passage and damper with motorised actuator.
-Electric or water coil.
Control electronics for version IN2
Electronic board for 3-step speed management, antifreeze function and automatic bypass. Wall-mounted remote touch panel on 503 box. Temperature sensors on board the machine.
Humidity / air quality regulators built into the remote display.
EVCNV2-N: advanced remote control with built-in humidity and VOC/CO₂ sensors, black.
EVCNV2-B: advanced remote control with built-in humidity and VOC/CO₂ sensors, white.
EVCNW2-N: advanced remote control with built-in humidity and VOC/CO₂ sensors and built-in Wi-Fi, black.
EVCNW2-B: advanced remote control with built-in humidity and VOC/CO₂ sensors and built-in Wi-Fi, white.
Humidity / air quality regulators built into the remote display.
EVCNV2-N: advanced remote control with built-in humidity and VOC/CO₂ sensors, black.
EVCNV2-B: advanced remote control with built-in humidity and VOC/CO₂ sensors, white.
EVCNW2-N: advanced remote control with built-in humidity and VOC/CO₂ sensors and built-in Wi-Fi, black.
EVCNW2-B: advanced remote control with built-in humidity and VOC/CO₂ sensors and built-in Wi-Fi, white.
Use
Schools, commercial environments, offices and small service sector applications for air exchange with up to 90% reduction in energy waste.
Technical specifications
| Grandezza EVHRC EC | 60 | 120 | |
| Fan Type | Centrifughi a pale avanti - motore elettronico direttamente accoppiato Brushless - segnale 0/10 V | ||
| Numero Ventilatori | Nr. | 2 di mandata + 1 di espulsione | 3 di mandata + 2 di espulsione |
| Portata aria V3/V2/V1 | m³/h | 620 / 355 / 165 | 1150 / 750 / 255 |
| Pressione utile | Pa | 15 | 15 |
| Scambiatore di calore (Dati riferiti alla norma UNI EN 13141-7 Temp.interna 20° - Umidità interna 28% - Temp.esterna 7° - Umidità esterna 72%) | |||
| Recovery efficiency | Piastre controcorrente - materiale polipropilene | ||
| Numero Scambiatori | Nr. | 2 | 3 |
| Efficienza di recupero EN13141-7 | % | 86,1 | 84,9 |
| Efficienza di recupero EN305 | % | 91,8 | 90,4 |
| Filtri | |||
| Tipo di Filtri | Filtri plissettati | ||
| Filtration class | ePM1 70% | ||
| Acoustic data (Data according to UNI EN 3741 and UNI EN 3744) | |||
| Potenza sonora Lw trasmessa dalla struttura | dB(A) | 59 | 62 |
| Pressione sonora a 3 mt V1 | dB(A) | 41 | 43 |
| Pressione sonora a 3 mt V2 | dB(A) | 36 | 37 |
| Pressione sonora a 3 mt V3 | dB(A) | 33 | 34 |
| Electrical data | |||
| Alimentazione | V / ph / Hz | 230 / 1 / 50 | |
| Corrente assorbita | A | 3,5 | 4,8 |
| Power input | W | 340 | 620 |
| Power input alla massima velocità con Filtri puliti | W | 165 | 355 |
| Potenza max assorbita con resistenza elettrica | kW | 1,34 | 2,12 |
| Corrente massima assorbita con resistenza elettrica | A | 7,8 | 11,3 |
| Protection rating | IP | X0 | X0 |
HORIZONTAL configuration dimensions
| Dimensionali configurazione ORIZZONTALE | 60 H | 120 H | |
| Altezza A | mm | 405 | 405 |
| Larghezza B | mm | 1040 | 1440 |
| Collari per la connessione alle tubazioni C | mm | 76 | 76 |
| Profondità D | mm | 905 | 905 |
| Diametro attacchi | mm | 200 | 250 |
| Scarico condensa | mm | 20 | 20 |
| peso | Kg | 71 | 88 |
VERTICAL configuration dimensions
| Dimensionali configurazione VERTICALE | 60 V | 120 V | |
| Altezza A | mm | 905 | 905 |
| Larghezza B | mm | 1040 | 1440 |
| Collari per la connessione alle tubazioni C | mm | 76 | 76 |
| Profondità D | mm | 405 | 405 |
| Diametro attacchi | mm | 200 | 250 |
| Scarico condensa | mm | 20 | 20 |
| peso | Kg | 71 | 88 |

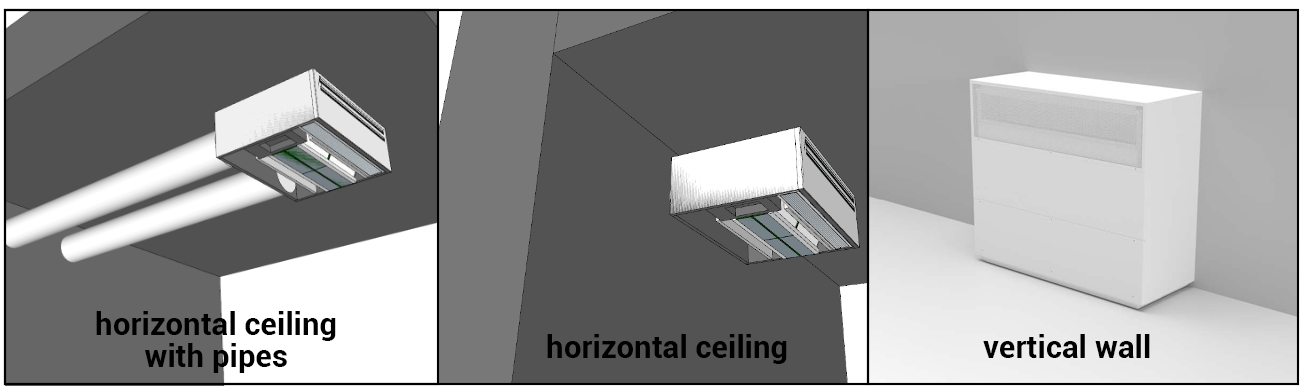

Installation
HORIZONTAL configuration: the unit can be installed close to the wall with the ducts pointing directly outwards or away from the wall with minimum ducting to reach the outside.
VERTICAL configuration: the unit can be installed close to the wall with minimum ducting to reach the outside.
Accessories

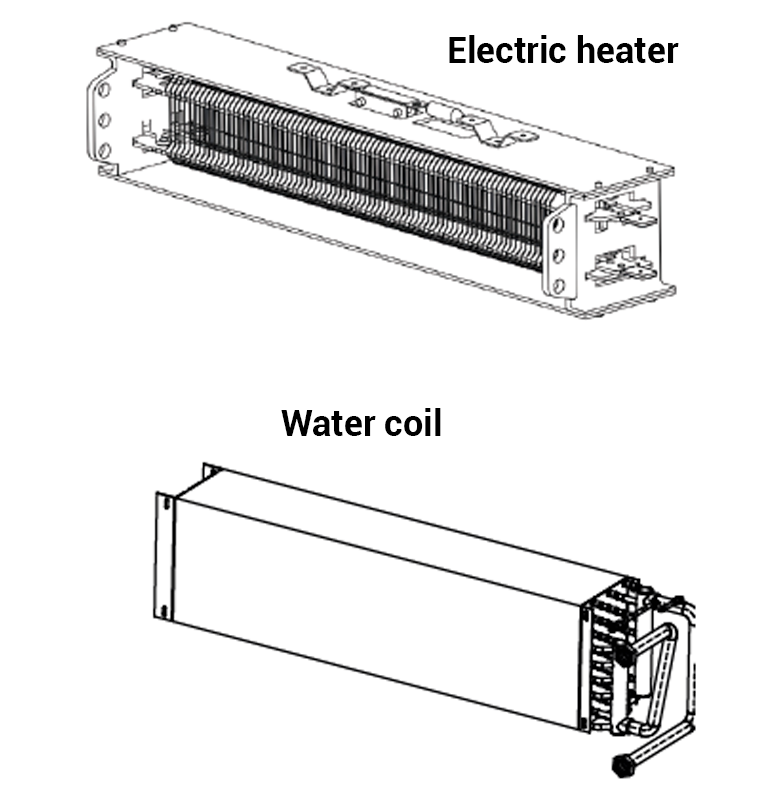

| Batterie elettriche | ||
| Models | EVRES 1 | EVRES 2 |
| Models compatibile unità | EVHRC EC 60 H / V | EVHRC EC 120 H / V |
| Potenza elettrica nominale kW | 1 (0,5x2) | 1,5 (0,5x3) |
| Alimentazione V / ph / Hz | 230V / 1F / 50Hz | |
| Batterie idroniche | |||
| Models | EVBACN 1 | EVBACN 2 | |
| Models compatibile unità | EVHRC EC 60 H / V | EVHRC EC 120 H / V | |
| Potenza termica nominale (1) | kW | 3,38 | 4,17 |
| Portata acqua nominale (1) | m3/h | 0,3 | 0,37 |
| Perdita di carico lato acqua (1) | KPa | 1 | 5 |
| Temperatura acqua di mandata | °C | 50 | 50 |
| Perdita di carico lato aria | Pa | 14 | 27 |
| Attacchi acqua | Ø | 3/4” | 3/4” |
(1) Yields and technical data with nominal flow rates and temperatures:
- Water IN / OUT 50°C / 40°C - Air IN 20°C
IN2 VERSION price list:
In the VERTICAL versions, the EVCNW2 control is built into the machine case.
| Models | EVHRC EC | controllo elettronico remoto EVCNV2-N colore nero | controllo elettronico remoto EVCNV2 -B colore bianco | controllo elettronico remoto EVCNW2-N con collegamento Wi-Fi colore nero | controllo elettronico remoto EVCNW2-B con collegamento Wi-Fi colore bianco | kit coppia filtri |
| euro | euro | euro | euro | euro | euro | |
| 60 H | 5.326,82 | 230,88 | 230,88 | 285,05 | 285,05 | 177,84 |
| 120 H | 7.427,21 | 259,92 | ||||
| 60 V | 5.999,18 | n.d. | n.d. | n.d. | n.d. | 177,84 |
| 120 V | 8.246,79 | 259,92 |
n/a – not available
Accessories price list
Germicidal lamps, heating elements and water coils must be ordered when purchasing the machine, as they are installed on the machine.
| Descrizione | Euro |
| Lampada germicida con raggi UV-C con alimentatore e fissaggi. La durata della lampada è stimata in 10.000 ore di funzionamento | 377,57 |
| EVRES 1 Resistenza elettrica 2x0,5KW (per EVHRC EC 60) | 376,34 |
| EVRES 2 Resistenza elettrica 3x0,5KW (per EVHRC EC 120) | 524,82 |
| EVBACN 1 Batteria idronica (per EVHRC EC 60) | 739,87 |
| EVBACN 2 Batteria idronica (per EVHRC EC 120) | 1.223,73 |
| Kit griglie esterne Ø 200 mm (per EVHRC EC 60) | 172,37 |
| Kit griglie esterne Ø 250 mm (per EVHRC EC 120) | 187,42 |
| Silenziatore | 316,01 |
Spare parts price list
| Descrizione | Euro |
| Lampada UV-C di ricambio | 251,71 |
