EVHRC 08 Highly efficient decentralized heat recovery unit for flow rates up to 80 m³/h
Product under development, will soon be available for purchase.
Description
Decentralised double-flow ventilation unit with high efficiency heat recovery. The unit is particularly suitable for residential units with the possibility of installing as many units as necessary to cover the air exchange requirements of the home.
Each unit covers approximately 50-60m² of surface area.
Constant flow rate selectable in 3 levels.
Each unit covers approximately 50-60m² of surface area.
Constant flow rate selectable in 3 levels.
Characteristics
-Self-supporting sheet metal frame with polyethylene insulated internal structure. RAL9003 painted external shells. -High efficiency counter-current cross-flow polypropylene heat exchanger. Low freezing temperatures. Very high heat exchange efficiency. Available in sensible or enthalpy operation. -Forward-curved Brushless centrifugal fans with electronic motor and modulating control; very high efficiency and low noise levels. -ePM1 80% filters with low pressure drop for both supply and exhaust, easily removable. -Free cooling made with automatic management by means of temperature probes.
INTEGRATED IN2 version control electronics
Electronic board for 3-step speed management, antifreeze function and automatic bypass. Wall-mounted remote touch panel on 503 box. Temperature sensors on board the machine.
Humidity / air quality regulators built into the remote display.
EVCNW2-B: advanced remote control with built-in humidity and VOC/CO₂ sensors and built-in Wi-Fi, white.
Humidity / air quality regulators built into the remote display.
EVCNW2-B: advanced remote control with built-in humidity and VOC/CO₂ sensors and built-in Wi-Fi, white.
Technical specifications
| Grandezza EVHRC | 08 | |
| Fan Type | Centrifughi a pale avanti - motore elettronico direttamente accoppiato Brushless - segnale 0/10 V | |
| Numero Ventilatori | Nr. | 2 |
| portata aria | m³/h | 80 |
| Pressione utile | Pa | 15 |
| Scambiatore di calore (Dati riferiti alla norma UNI EN 13141-7 Temp.interna 20° - Umidità interna 28% - Temp.esterna 7° - Umidità esterna 72%) | ||
| Recovery efficiency | Piastre controcorrente - materiale polipropilene | |
| Numero Scambiatori | Nr. | 1 |
| Efficienza di recupero EN13141-7 sensibile | % | 90,2 (Controcorrente ad alta efficienza) |
| Efficienza di recupero EN13141-7 sensibile / latente | % | 80,5 / 61 (Controcorrente con membrana Entalpica) |
| Filtri | ||
| Tipo di Filtri | Filtri plissettati | |
| Filtration class | ePM1 80% | |
| Acoustic data (Data according to UNI EN 3741 and UNI EN 3744) | ||
| Potenza sonora Lw trasmessa dalla struttura | dB(A) | 48 |
| Pressione sonora a 1 mt | dB(A) | 36,6 |
| Pressione sonora a 3 mt | dB(A) | 29,5 |
| Electrical data | ||
| Alimentazione | V / ph / Hz | 230 / 1 / 50 |
| Power input | W | 35 |
| Protection rating | IP | X2 |

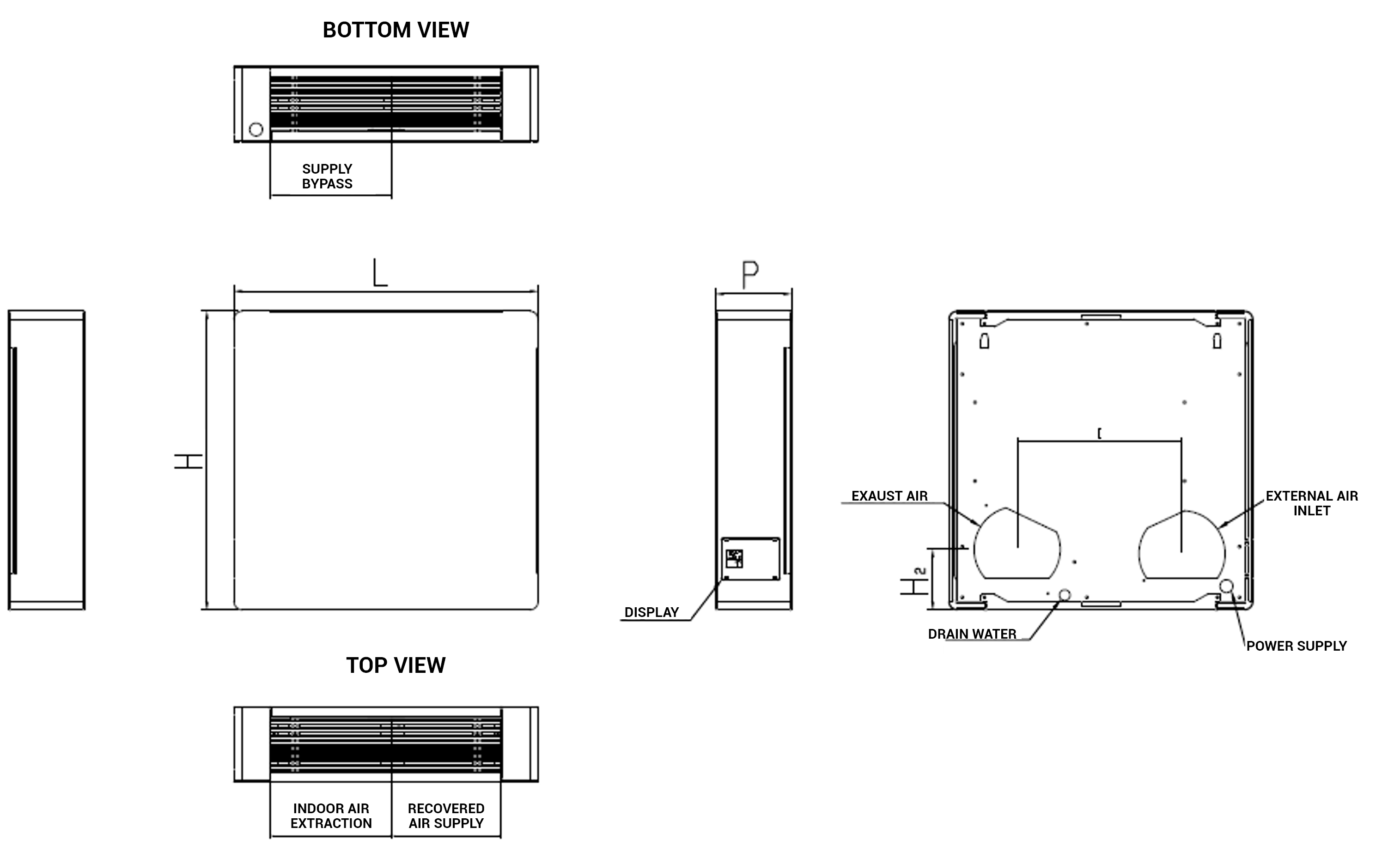

Dimensions
| dimensioni | EVHRC 08 | ||
| Larghezza L | mm | 565 | |
| Profondità P | mm | 148 | |
| Altezza H | mm | 555 | |
| Diametro fori esterni | mm | 2 x 160 | |
| Interasse fori I | mm | 306 | |
| distanza H2 | mm | 112 | |
| Scarico condensa | mm | 15 | |
| peso | Kg | Sensibile | Entalpico |
| 20 | 21 | ||
Installation
The unit must be installed close to the wall with the ducts facing outwards.
Silencer kit (Accessory)
Silencers to be inserted into the inlet and outlet ducts for noise attenuation.
IN2 VERSION price list:
| Models | EVHRC 08 | Kit silenziatori Ø 160 mm | kit coppia filtri |
| euro | euro | euro | |
| EVHRC 08 ENTALPICO | 2.440,41 | 191,52 | 65,66 |
Scope of supply
