EVHRN-T Heat exchanger cross flow up to 3000m³/h and 80% efficiency
Description
Non-residential dual flow ventilation unit with medium efficiency for heat recovery (η> 73%). Ideal solution to get the highest energy certification of buildings in the tertiary, industrial and collective residential sector (centralized condominium systems).
ALL SIZES OF THE EVHRN-T RECOVERY UNIT CAN BE INSTALLED BOTH HORIZONTALLY AND VERTICAL AS INSIDE THEY ALL HAVE A DOUBLE CONDENSATE COLLECTION TANK.
The installation can be done both indoors and outdoors (with protective roof), with an ambient temperature between -15°C and + 50°C.
ALL SIZES OF THE EVHRN-T RECOVERY UNIT CAN BE INSTALLED BOTH HORIZONTALLY AND VERTICAL AS INSIDE THEY ALL HAVE A DOUBLE CONDENSATE COLLECTION TANK.
The installation can be done both indoors and outdoors (with protective roof), with an ambient temperature between -15°C and + 50°C.
Technical Features:
Structure composed of self-supporting galvanized sheet metal frame with 10+15mm thick polyethylene adhesive insulation.
Condensate collection tank in galvanized sheet metal, counter-current aluminum static heat exchanger with 80% efficiency, automatic by-pass, automatic defrosting of the exchanger (via anti-freeze strategy), backward curved radial fans with EC motors with electronic speed control, low consumption (Erp 2018), single-phase (up to size 200) and three-phase (size 250, 300) which guarantee high static pressure values available to the ducting.
Circular inlets for connection to the air ducts.
Low pressure drop filters (EN 779) class ePM 10 50% (M5) for extract air and ePM 2.5 65% (F7) for supply air.
Side access doors and internal technical spaces for easy filter inspection / maintenance.

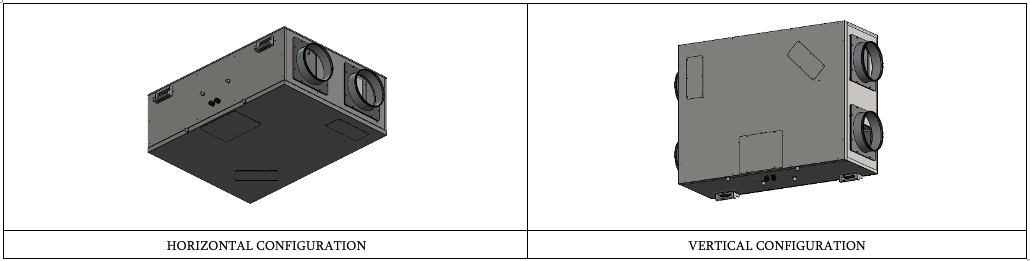

Horizontal or vertical installation.
Condensate collection tank in galvanized sheet metal, counter-current aluminum static heat exchanger with 80% efficiency, automatic by-pass, automatic defrosting of the exchanger (via anti-freeze strategy), backward curved radial fans with EC motors with electronic speed control, low consumption (Erp 2018), single-phase (up to size 200) and three-phase (size 250, 300) which guarantee high static pressure values available to the ducting.
Circular inlets for connection to the air ducts.
Low pressure drop filters (EN 779) class ePM 10 50% (M5) for extract air and ePM 2.5 65% (F7) for supply air.
Side access doors and internal technical spaces for easy filter inspection / maintenance.
Horizontal or vertical installation.
use
Offices, shops, bars and restaurants, collective residential buildings.
Ideal for air exchange with efficiencies up to 80%.
Ideal for air exchange with efficiencies up to 80%.
Elettronic control device:
Version IN: with electronic card for 3-step speed management, anti-freeze function and automatic bypass. Wall-mounted touch remote panel on 503 box. Temperature sensors on the machine and the possibility of managing the auxiliary hot water coil. Humidity / air quality sensors integrated in the remote display.
EVCNV2-N: advanced remote control with integrated humidity and VOC / CO₂ sensors, black color.
EVCNV2-B: advanced remote control with integrated humidity and VOC / CO₂ sensors, white color.
EVCNW2-N: advanced remote control with integrated humidity and VOC / CO₂ sensors, with integrated black Wi-Fi.
EVCNW2-B: advanced remote control with integrated humidity and VOC / CO₂ sensors with integrated white Wi-Fi.
Version S: The unit is supplied without electronic board and the fan speed is changed by means of a 0-10V input signal.
It is possible to purchase the EVTDV remote terminal with LCD display separately, to control the speed of the fans and the bypass with various advanced functions, including:
- control of the speed of the individual fans independently, which means that the machine can be used in positive pressure or negative pressure mode;
- timed dirty filter warning;
- possibility of connecting the EVSQV air quality sensor, sold separately.
EVCNV2-N: advanced remote control with integrated humidity and VOC / CO₂ sensors, black color.
EVCNV2-B: advanced remote control with integrated humidity and VOC / CO₂ sensors, white color.
EVCNW2-N: advanced remote control with integrated humidity and VOC / CO₂ sensors, with integrated black Wi-Fi.
EVCNW2-B: advanced remote control with integrated humidity and VOC / CO₂ sensors with integrated white Wi-Fi.
Version S: The unit is supplied without electronic board and the fan speed is changed by means of a 0-10V input signal.
It is possible to purchase the EVTDV remote terminal with LCD display separately, to control the speed of the fans and the bypass with various advanced functions, including:
- control of the speed of the individual fans independently, which means that the machine can be used in positive pressure or negative pressure mode;
- timed dirty filter warning;
- possibility of connecting the EVSQV air quality sensor, sold separately.
Adjustment configuration IN2
The machine will be delivered with H5-A or V1-A configuration. A B configurations selectable by electronics.
Accessories:
- EVBE model ON / OFF duct electric heater.
- EVBER model duct electric heater with integrated regulation
- EVBAC model heating / post heating coil
- EVBAF model cooling / post-cooling coil
- EVBER model duct electric heater with integrated regulation
- EVBAC model heating / post heating coil
- EVBAF model cooling / post-cooling coil
Installation

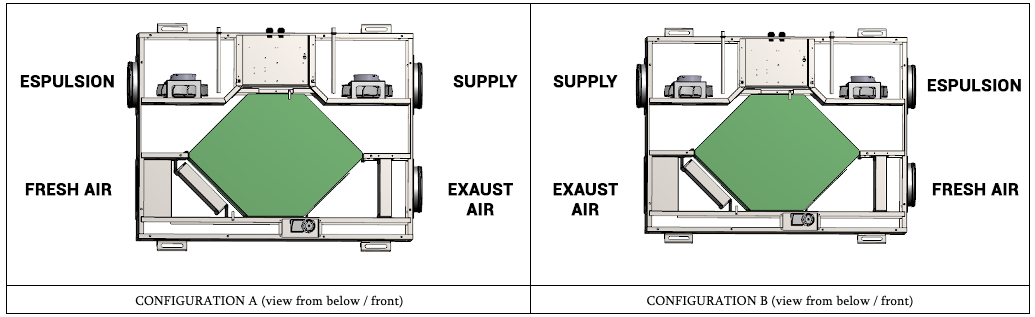

Configurations
Dimensions:
| Dimensioni EVHRN-T: | 70 | 100 | 150 | 200 | 250 | 300 | |
| A | mm | 1210 | 1210 | 1210 | 1210 | 1410 | 1410 |
| B | mm | 990 | 990 | 990 | 990 | 1110 | 1110 |
| C | mm | 320 | 420 | 520 | 620 | 720 | 720 |
| Diametro attacchi aria | Ø mm | 200 | 250 | 315 | 355 | 355 | 400 |
| Diametro scarico condensa | Ø mm | 18 | 18 | 18 | 18 | 18 | 18 |
Technical features:
| Modelli EVHRN-T: | 70 | 100 | 150 | 200 | 250 | 300 | |
| Fan Type | Ventilatori Brushless con motore elettronico e comando modulante. | ||||||
| Numero Ventilatori | Nr | 2 | |||||
| Portata aria massima | m³/h | 700 | 1000 | 1500 | 2000 | 2500 | 3000 |
| Pressione utile disponibile | Pa | 120 | 240 | 200 | 140 | 220 | 140 |
| Potenza sonora Lw (EN3747) dalla cassa | dB(A) | 61 | 62 | 64 | 68 | 69 | 72 |
| Potenza sonora Lw (EN3747) dal canale | dB(A) | 71 | 74 | 76 | 79 | 81 | 83 |
| Recovery efficiency | Piastre in alluminio controcorrente | ||||||
| Heat recovery efficiency | % | 75/80% | |||||
| Dati Riferiti alle seguenti condizioni (UNI EN 13141-7) : -portata aria nominale -aria esterna 5°C con 72% ur / aria espulsa 25°C con 28% ur | |||||||
| Filter type | Rinnovo ePM 2.5 - 65 % (F7) / Estrazione ePM 10 - 50 % (M5) | ||||||
| Supply voltage | V | 230V / 1 / 50 Hz | 400V / 3 / 50Hz | ||||
| Potenza max assorbita | kw | 0,29 | 0,34 | 0,62 | 0,78 | 1,50 | 1,90 |
| Corrente max assorbita | A | 1,5 | 1,5 | 2,2 | 4,1 | 3,2 | 3,5 |
| Protection rating | IP 20 | IP 20 | IP 20 | IP 20 | IP 20 | IP 20 | |
| Dati riferiti ai valori nominali dichiarati dal costrutture dei ventilatori Le unità devono essere collegate ai canali di distribuzione Le prestazioni sono state verificate con filtri a bassa perdita di carico in dotazione “ puliti “ | |||||||
Price list of recuperators and accessories version S
| Models | EVHRN-T | controllo elettronico remoto EVTDV | Scatola ad incasso per EVTDV | sensore qualità dell'aria EVSQV | kit coppia filtri |
| euro | euro | euro | euro | euro | |
| 70 | 2.668,00 | 188,78 | 17,78 | 262,66 | 190,54 |
| 100 | 3.040,00 | 188,78 | 17,78 | 262,66 | 190,54 |
| 150 | 3.884,00 | 188,78 | 17,78 | 262,66 | 190,54 |
| 200 | 5.096,00 | 188,78 | 17,78 | 262,66 | 215,95 |
| 250 | 6.860,00 | 188,78 | 17,78 | 262,66 | 266,76 |
| 300 | 7.644,00 | 188,78 | 17,78 | 262,66 | 266,76 |
Price list of recuperators and accessories version IN2:
| Models | EVHRN-T | controllo elettronico remoto EVCNV2-N colore nero | controllo elettronico remoto EVCNV2 -B colore bianco | controllo elettronico remoto EVCNW2-N con collegamento Wi-Fi colore nero | controllo elettronico remoto EVCNW2-B con collegamento Wi-Fi colore bianco | kit coppia filtri |
| euro | euro | euro | euro | euro | euro | |
| 70 | 3.320,00 | 230,88 | 230,88 | 285,05 | 285,05 | 190,54 |
| 100 | 3.700,00 | 230,88 | 230,88 | 285,05 | 285,05 | 190,54 |
| 150 | 4.560,00 | 230,88 | 230,88 | 285,05 | 285,05 | 190,54 |
| 200 | 5.800,00 | 230,88 | 230,88 | 285,05 | 285,05 | 215,95 |
| 250 | 7.600,00 | 230,88 | 230,88 | 285,05 | 285,05 | 266,76 |
| 300 | 8.400,00 | 230,88 | 230,88 | 285,05 | 285,05 | 266,76 |
Roof Protection
| Modello EVHRN-T | Versione ORIZZONTALE | Versione VERTICALE |
| euro | euro | |
| 70 | 304,87 | 241,35 |
| 100 | 304,87 | 241,35 |
| 150 | 304,87 | 304,87 |
| 200 | 304,87 | 304,87 |
| 250 | 304,87 | 304,87 |
| 300 | 304,87 | 304,87 |
Feet kit (4 pieces)
| Models | Kit piedini (4 pezzi) VERSIONE VERTICALE | Kit piedini (4 pezzi) VERSIONE ORIZZONTALE |
| euro | euro | |
| 70 | 220,52 | 324,29 |
| 100 | 220,52 | 324,29 |
| 150 | 220,52 | 324,29 |
| 200 | 220,52 | 324,29 |
| 250 | 220,52 | 324,29 |
| 300 | 220,52 | 324,29 |
