EGA-ONE Grill for plenum ONE-BOX

Immagine
Immagine

Description:

Rectangular steel grill with smooth and uniform frontal surface in a single body. Design with 30 mm perimeter frame and inside with 4 mm diameter circular holes or 4 mm squares on each side for optimal flow distribution over the entire surface. Optimized construction for maximum rigidity.
RAL9003 painting with surface treatment for maximum corrosion resistance. Quick coupling system with direct connection by means of special pins behind it, designed specifically for coupling with the spring clips on the front of the ONE BOX® series plenums and designed to guarantee a variable travel from 0 to 30 mm to correct the any misalignment between the plenum and the wall.

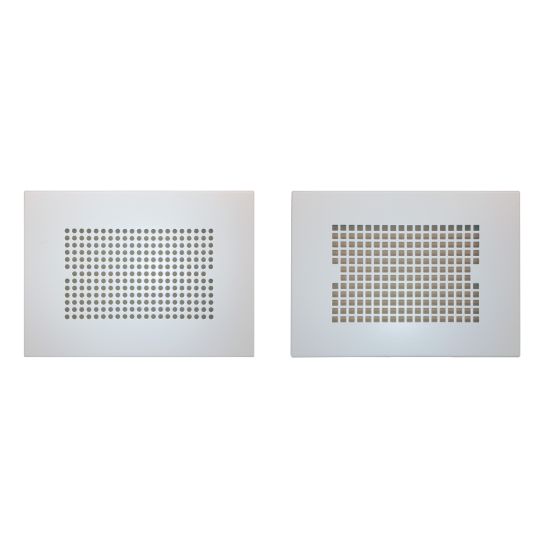

Models :

EGAFQ-ONE egg crate grill.
EGAFR-ONE perforated grill.

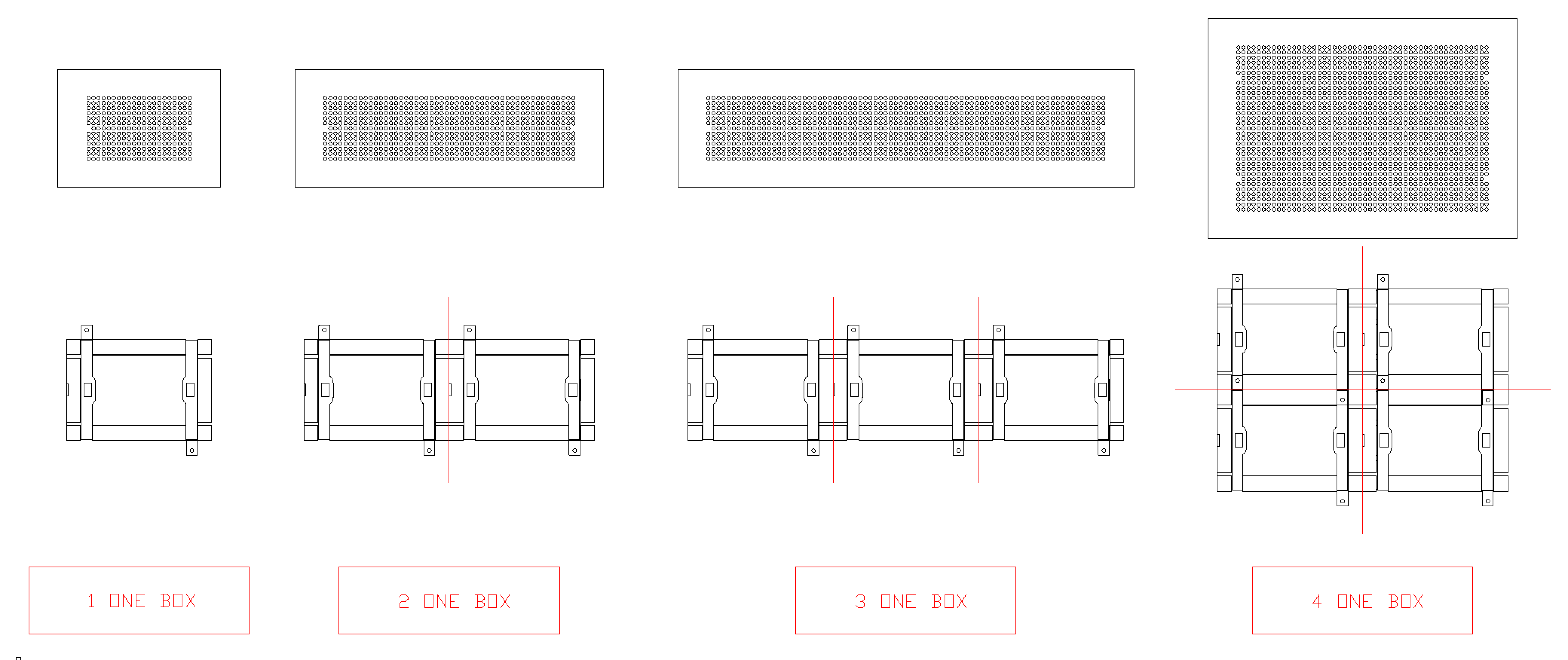

Configurations:

Air flow rate and pressure drop:

ModelsDisegno grigliaDimensioni esterno cornice B x H(mm)Numero di ONE BOXportata aria m3/h
20406080100120140160180
Perdita di carico (Pa)
EGAFQ-ONE 1Maglia quadra193 x 140124
EGAFQ-ONE 2Maglia quadra366 x 14021124
EGAFQ-ONE 3Maglia quadra540 x 1403 12345
EGAFQ-ONE 4Maglia quadra366 x 2604 123456
EGAFR-ONE 1Forellinata193 x 140139
EGAFR-ONE 2Forellinata366 x 14021359
EGAFR-ONE 3Forellinata540 x 1403 3471013
EGAFR-ONE 4Forellinata366 x 2604 3457913

Price list

ModelsDisegno grigliaEuro
EGAFQ-ONE 1Maglia quadra40,55
EGAFQ-ONE 2Maglia quadra54,66
EGAFQ-ONE 3Maglia quadra67,88
EGAFQ-ONE 4Maglia quadra74,93
EGAFR-ONE 1Forellinata40,55
EGAFR-ONE 2Forellinata54,66
EGAFR-ONE 3Forellinata67,88
EGAFR-ONE 4Forellinata74,93
