EAGF Perforated face grille
Description :

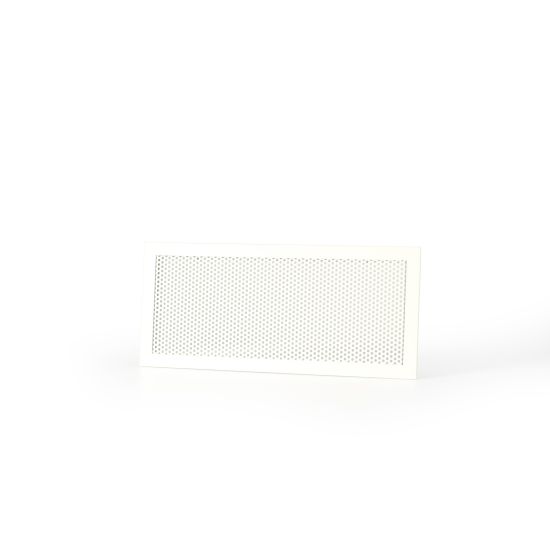

Perforated face grille with aluminium frame, white painted RAL 9016 can be installed on EPL or EPP plenum with 1, 2 or 3 connections for the tube HTPE PLUS 63 (internal diameter 63mm and external 75mm).
Models :
EAGF-1212 dimensions 120x120 mm
EAGF-312 dimensions 300x120 mm
EAGF-412 dimensions 400x120 mm
EAGF-312 dimensions 300x120 mm
EAGF-412 dimensions 400x120 mm
Accessories :
da tradurre
Pressure drops
| griglia EAGF-1212 | filtro EAFI-1212 | |
| portata m3/h | Pa | Pa |
| 10 | 10 | 6 |
| 15 | 10 | 8 |
| 20 | 10 | 10 |
| 25 | 12 | 12 |
| 30 | 15 | 15 |
| 35 | 19 | 18 |
| 40 | 25 | 21 |
| 45 | 35 | 25 |
| griglia EAGF-312 | filtro EAFI-312 | |
| portata m3/h | Pa | Pa |
| 40 | 10 | 8 |
| 45 | 10 | 9 |
| 50 | 10 | 10 |
| 55 | 10 | 11 |
| 60 | 11 | 12 |
| 65 | 12 | 13 |
| 70 | 13,5 | 14 |
| 75 | 15 | 15 |
| 80 | 17 | 16 |
| 85 | 19 | 17 |
| 90 | 21 | 18 |
| griglia EAGF-412 | filtro EAFI-412 | |
| portata m3/h | Pa | Pa |
| 60 | 6 | 8 |
| 70 | 7 | 10 |
| 80 | 8 | 12 |
| 90 | 9 | 14 |
| 100 | 10 | 16 |
| 120 | 13 | 17 |
| 140 | 16 | 18 |
