EGQ-PUSH Exhaust egg crate grille 13x13 mm with filter

Description

Exhaust egg crate grille 13x13 mm for false ceiling with double frame and hinge opening and push-pull system for easy filter installation and replacement.

Characteristics

Material: aluminium.
Finish: natural anodised.
Fastening: with visible screws.
Filter: COARSE class (G2) thickness 12 mm.
Opening/closing: with push-pull system.

Installation

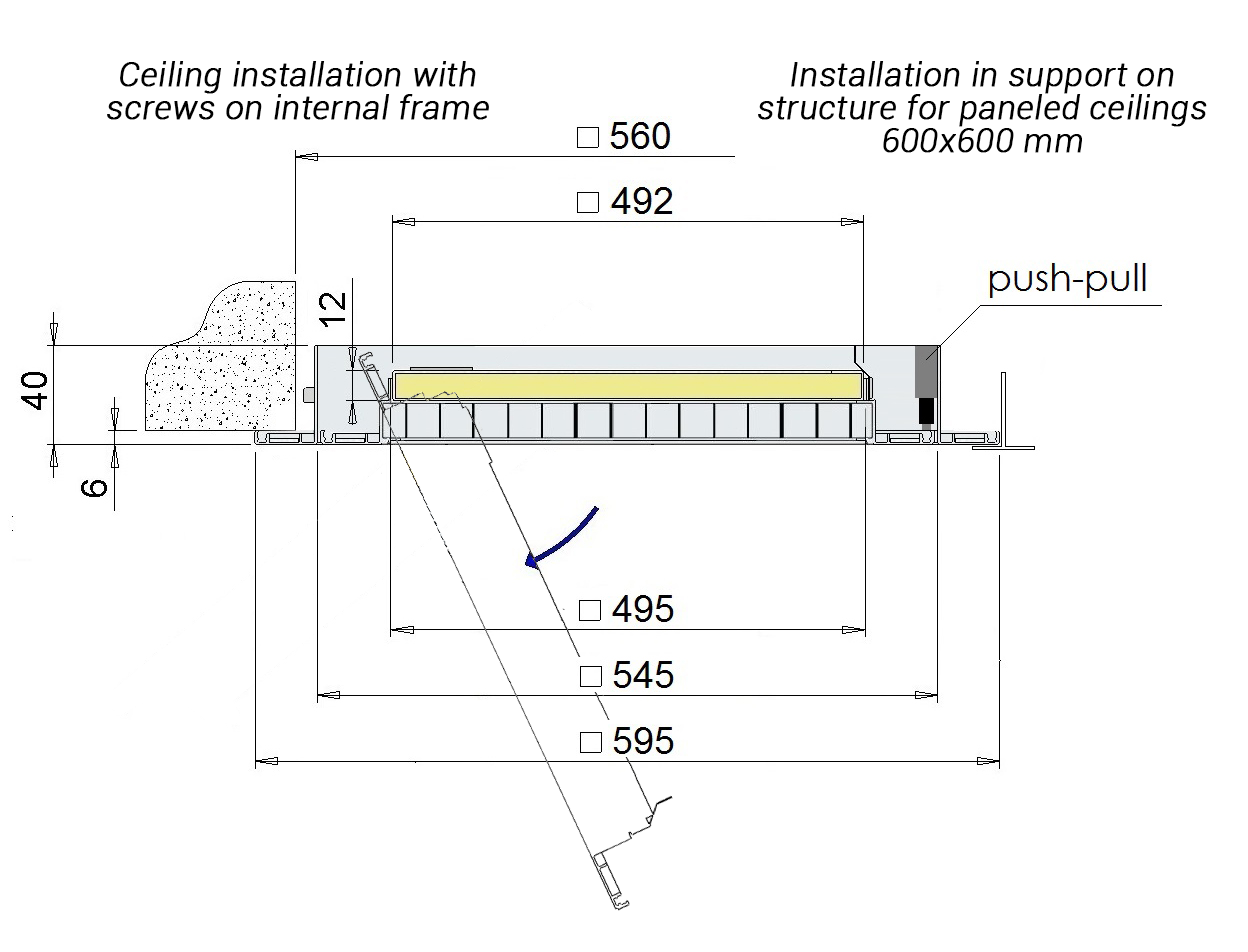

Installation is carried out by securing the external frame of the grille to the wall using screws or, for installation on modular 600x600 false ceilings, resting on the metal structure in place of the panel.

Use

Grille for external or indoor air exhaust where dust pre-filtration is recommended.
Initial pressure drop lower than 40 Pa with 1.5 m/s speed on the filter.

Accessories

- EPZ galvanised plenum;
- EPI insulated plenum.

On request

Closing with screw or magnet;
white RAL 9016 painting or other RAL colours;
special dimensions.

Effective cross-section

H	L
H	200	300	400	500	600	800	1000
	sezione efficace della griglia m²
200	0,018	0,031	0,045	0,058	0,071	0,098	0,124
300	0,031	0,054	0,078	0,101	0,124	0,170	0,217
400	0,045	0,078	0,111	0,144	0,177	0,243	0,309
500	0,058	0,101	0,144	0,187	0,230	0,315	0,401
600	0,071	0,124	0,177	0,230	0,282	0,388	0,493

Operating data

m³/h: flow rate
Pa: pressure drops in Pascal
dB(A): noise level

An air velocity on the filter of 1.5 m/s is recommended to contain pressure drops and maintain filtration efficiency;
the flow rate data in the table refers to the grille with the filter.

All dimensions are expressed in mm.

H	V m/s	L
H	V m/s	200	300	400	500	600	800	1000
	Velocità frontale sul filtro	portata m³/h
200	1,5	63	121	180	238	296	413	530
200	2	84	162	240	317	395	551	706
300	1,5	121	234	346	458	571	795	1020
300	2	162	312	461	611	761	1060	1360
400	1,5	180	346	512	679	845	1178	1510
400	2	240	461	683	905	1127	1570	2014
500	1,5	238	458	679	899	1119	1560	2000
500	2	317	611	905	1199	1492	2080	2667
600	1,5	296	571	845	1119	1394	1942	2491
600	2	395	761	1127	1492	1858	2590	3321

Operating data for the version for suspended ceilings

Models	dimensioni esterno cornice	sezione efficace della griglia	sezione efficace del filtro	Velocità frontale sul filtro	portata aria
Models	mm	m²	m²	m/s	m³/h
EGQ-PUSH	595x595	0,229	0,218	1,5	1180
EGQ-PUSH	595x595	0,229	0,218	2	1570

Noise level dB(A)

V m/s	dB(A)
1,5	<20
2	20/25

Pressure drop (Pa)

V m/s	Pa
1,5	25/30
2	45/50

Plenum

Models L1 x H1	Top Connection			Lateral Connection			E	F	Models L1 x H1	Top Connection			Lateral Connection			E	F
Models L1 x H1	P1	Nr. Connections	Ø d	P2	Nr. Connections	Ø d	E	F	Models L1 x H1	P1	Nr. Connections	Ø d	P2	Nr. Connections	Ø d	E	F
200x200	200	1	198	300	1	198	80	12	500x300	200	1	248	350	1	248	80	12
300x200	200	1	198	300	1	198	80	12	600x300	200	2	198	350	2	248	80	12
400x200	200	1	198	300	1	198	80	12	800x300	200	2	248	350	2	248	80	12
500x200	200	1	198	300	1	198	80	12	1000x300	200	2	248	350	2	248	80	12
600x200	200	2	198	300	2	198	80	12	400x400	200	1	298	350	1	298	80	12
800x200	200	2	198	300	2	198	80	12	500x400	200	1	298	350	1	298	80	12
1000x200	200	2	198	300	2	198	80	12	600x400	200	2	198	350	2	248	80	12
300x300	200	1	248	350	1	248	80	12	800x400	200	2	298	350	2	298	80	12
400x300	200	1	248	350	1	248	80	12	1000x400	200	2	298	400	2	298	80	12

Plenum for grille version for square false ceiling

All dimensions are espressed in mm.

Models L1 x H1	Lateral Connection			E	F
	P2	Nr. Connections	Ø d
560x560	300	1	250	80	12

Price list

Painted white RAL 9016 + 20%

H	L
H	200	300	400	500	600	800	1000
	euro	euro	euro	euro	euro	euro	euro
200	59,89	62,51	78,17	92,06	103,08	121,81	158,56
300	62,51	79,25	96,60	110,68	127,02	160,68	185,92
400	78,17	96,60	110,72	137,87	159,62	199,74	226,87
500	92,06	110,68	137,87	161,77	194,28	226,87	268,14
600	103,08	127,02	159,62	194,28	217,00	265,98	320,23

Price list for grille version for square false ceiling

White painted RAL 9016 + 20%

Models	dimensioni esterno cornice	euro
	mm
EGQ-PUSH	595x595	165,05

Plenum

Dimensions	Top Connection		Lateral Connection
Dimensions	EPZ - Plenum Box	EPI Insulated Plenum Box	EPZ - Plenum Box	EPI Insulated Plenum Box
L1xH1	euro	euro	euro	euro
200x200	34,24	47,08	37,85	51,92
300x200	37,16	50,99	41,70	57,07
400x200	40,12	54,95	45,50	62,18
500x200	43,04	58,91	49,34	67,29
600x200	59,99	78,09	71,98	92,00
800x200	70,71	90,27	79,62	102,30
1000x200	76,59	98,19	76,59	112,52
300x300	41,20	56,14	49,27	67,06
400x300	55,34	71,90	64,75	84,54
500x300	58,72	76,43	69,44	90,88
600x300	69,52	88,69	77,59	99,53
800x300	84,97	112,40	99,72	132,19
1000x300	91,73	121,47	109,14	144,80
400x400	59,76	77,70	74,09	96,96
500x400	63,60	82,78	79,70	104,45
600x400	82,31	108,98	91,23	121,01
800x400	99,26	128,97	115,32	150,49
1000x400	117,67	153,18	142,65	186,69

Plenum for grille version for square false ceiling

Dimensions	Lateral Connection
Dimensions	EPZ - Plenum Box	EPI Insulated Plenum Box
L1xH1	euro	euro
560x560	91,11	123,09
