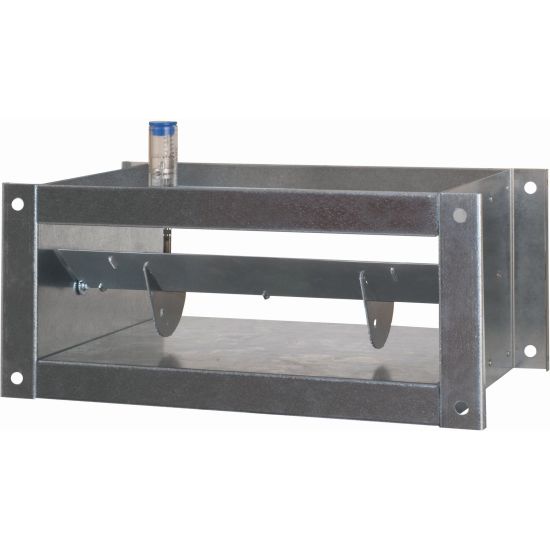

ERPR Constant air flow regulators for rectangular duct

Immagine
Immagine

Description

Flow rate regulators for rectangular ducts on systems with constant flow rate. Automatic mechanical operation, without auxiliary energy to keep the air flow rate constant.

Characteristics

Material: galvanised steel.
Finish: galvanised.
Operating temperature: -30° +100°C.
Installation: on rectangular duct.

Use

In all ventilation systems, to keep the air flow rate constant.

Notes

Air flow rate within a differential pressure range between 70 and 1000 Pa. Minimum speed 2 m/s.
The accuracy of the air flow is ± 5-10%, depending on the speed and conditions of use.
All regulators are calibrated at the factory according to the flow rate value required by the customer.
Maintenance free.

On request

Version with servomotor.
For ventilation, air conditioning and heating systems where variable adjustment is required by electrical operation with proportional control and with an operating voltage of 24Vac - 50 Hz.

Operating data and Price list

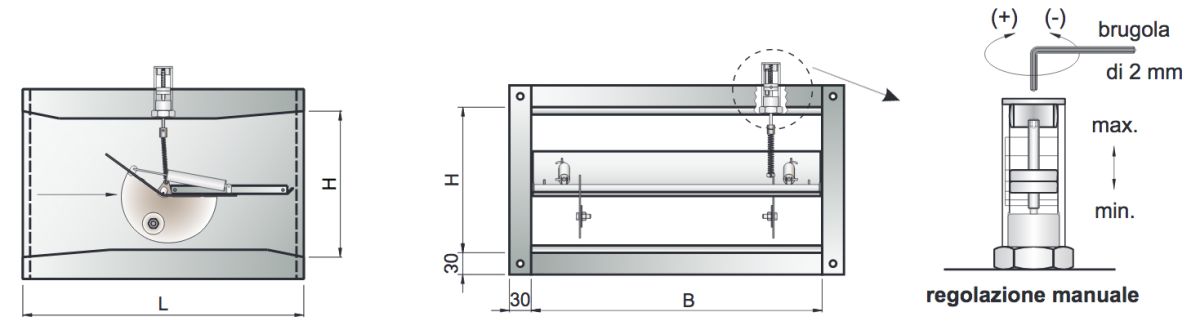

all dimensions are expressed in mm

BHLportata ariaregolatore di portata
ERPR
m³/heuro
200100220200-350515,05
300-600515,05
300100220200-400536,14
300-600536,14
400-800536,14
400100220300-600557,22
500-1100557,22
150150220200-250545,17
250-350545,17
300-500545,17
400-700545,17
300150220400-800545,17
700-1200545,17
1300-1500545,17
200200220400-650545,17
600-1000545,17
300200220500-1100545,17
1000-1700545,17
1500-2000545,17
400200385600-900584,33
800-1500584,33
1400-2200584,33
2100-2800584,33
3003003851500-2200629,51
2000-3000629,51
4503003851000-1700653,60
1500-2500653,60
2000-4200653,60
3500-4500653,60
6003003851500-3000659,63
2500-4500659,63
4500-6500659,63
