EPSP Plenum box in molded polystyrene
Description
Plenum box made of molded polystyrene with a density of 45 kg/mc, class 1 fireproof and internally crystallized.
The transformation process combines the characteristics of the material to make the plenum a compact and light.
The transformation process combines the characteristics of the material to make the plenum a compact and light.
Features
These peculiarities, combined with the trapezoidal shape that characterizes it, allow it to be laid when the tiled false ceiling is completed, thus facilitating both the construction and maintenance of the system.
The plenum has an excellent thermo-acoustic insulation, therefore, it does not require the application of further insulating materials.
The plenum has an excellent thermo-acoustic insulation, therefore, it does not require the application of further insulating materials.
Installation
Thanks to its lightness, the plenum box is laid on the structure of the false ceiling, eliminating the need of suspensions for fixing it to the ceiling.
This gives a significative advantage of reducing assembly times and saving the space occupied by over 50% compared to a traditional plenum.
This gives a significative advantage of reducing assembly times and saving the space occupied by over 50% compared to a traditional plenum.
Use
Designed for use with diffusers made on panels with nominal dimensions 300x300, 400x400, 500x500 and 600x600. The plenum is supplied without the hose connection.
On demand
Damper on the fitting complete with control lever for flow adjustment and equaliser.
Dimensions
| Models | Connessioni montabili ØN | dimensioni (mm) | ||||
| ØN1 | ØN2 | ØN3 | E | F | H | |
| EPSP 300x300 | 125 | 160 | 290 | 181 | 225 | |
| EPSP 400x400 | 125 | 160 | 200 | 390 | 239 | 255 |
| EPSP 500x500 | 125 | 160 | 200 | 490 | 275 | 255 |
| EPSP 600x600 | 160 | 200 | 250 | 590 | 320 | 311 |

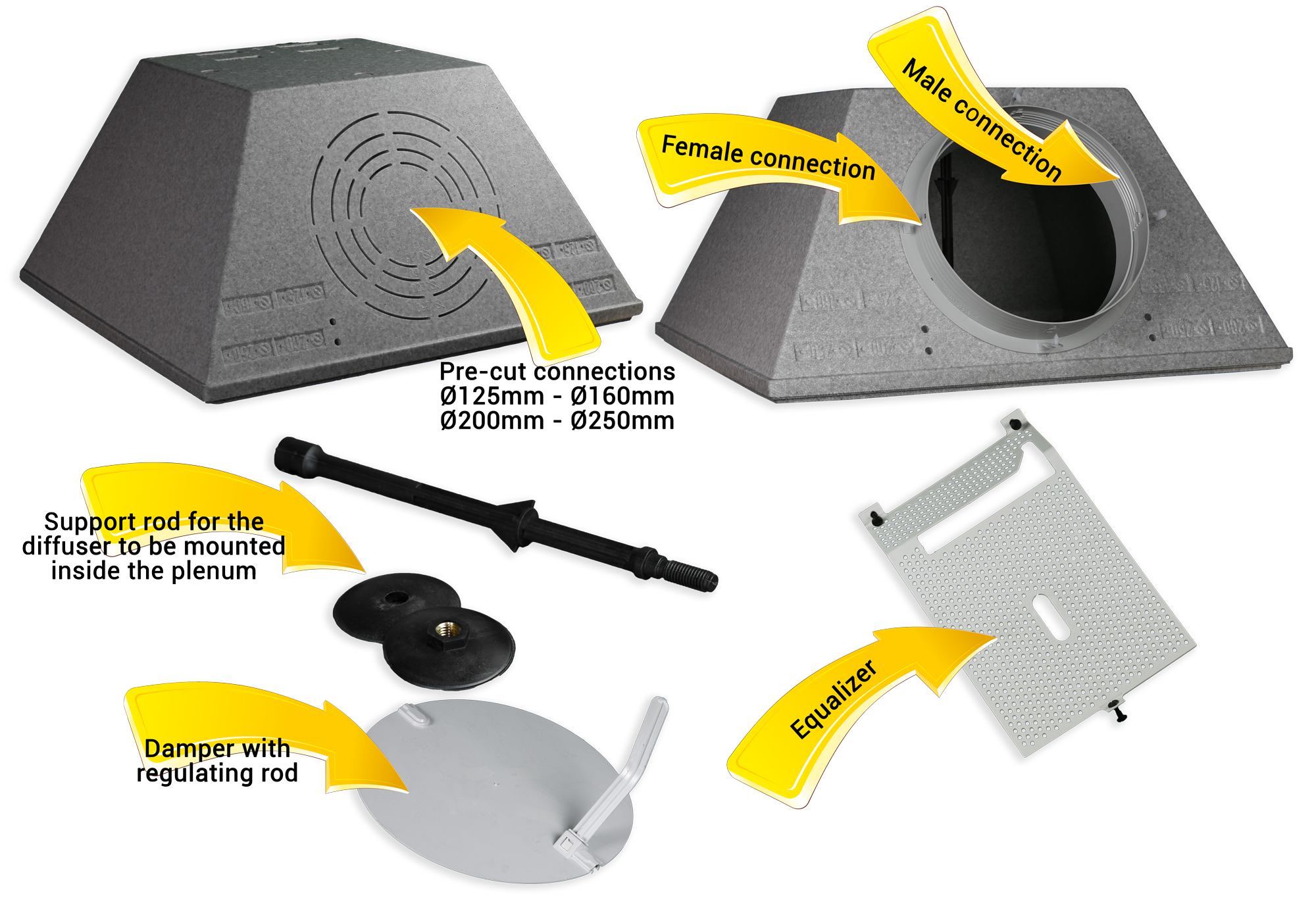

Plenum and accessories
Price list
| Descrizione | Euro |
| Plenum polistirolo EPSP 300x300 ignifugo classe 1 completo di asta di montaggio e vite M6 | 27,28 |
| Plenum polistirolo EPSP 400x400 ignifugo classe 1 completo di asta di montaggio e vite M6 | 37,04 |
| Plenum polistirolo EPSP 500x500 ignifugo classe 1 completo di asta di montaggio e vite M6 | 44,55 |
| Plenum polistirolo EPSP 600x600 ignifugo classe 1 completo di asta di montaggio e vite M6 | 58,22 |
Accessories
| Descrizione | Euro |
| Equalizzatore EQU-A per plenum polistirolo EPSP 300x300 | 14,56 |
| Equalizzatore EQU-A per plenum polistirolo EPSP 400x400 | 17,23 |
| Equalizzatore EQU-A per plenum polistirolo EPSP 500x500 | 19,46 |
| Equalizzatore EQU-A per plenum polistirolo EPSP 600x600 | 12,96 |
| Manicotto cartellato MCA Ø125 mm in ABS per plenum EPSP | 9,75 |
| Manicotto cartellato MCA Ø160 mm in ABS per plenum EPSP | 11,10 |
| Manicotto cartellato MCA Ø200 mm in ABS per plenum EPSP | 11,40 |
| Manicotto cartellato MCA Ø250 mm in ABS per plenum EPSP | 12,44 |
| Serranda SER-A Ø 125 mm per manicotto in ABS MCA | 3,51 |
| Serranda SER-A Ø 160 mm per manicotto in ABS MCA | 3,51 |
| Serranda SER-A Ø 200 mm per manicotto in ABS MCA | 4,49 |
| Serranda SER-A Ø 250 mm per manicotto in ABS MCA | 5,75 |
