EDQV EDQV-PQ Four ways diffusers
Description
4-way square diffusers with removable cones.
Characteristics
Material: aluminium.
Finish: painted white RAL 9016.
Installation: fastening by means of non-visible screws.
Finish: painted white RAL 9016.
Installation: fastening by means of non-visible screws.
Accessories
-SC galvanised steel regulation damper for EDQV;
-SCN galvanised steel regulation damper for EDQV-PQ;
- EPZ-EDQ galvanised steel plenum;
- EPI-EDQ galvanised steel insulated plenum.
-SCN galvanised steel regulation damper for EDQV-PQ;
- EPZ-EDQ galvanised steel plenum;
- EPI-EDQ galvanised steel insulated plenum.
Dimensions
all dimensions are expressed in mm
| Models | EDQV | EDQV-PQ | ||||||||
| AxA | BxB | CxC | DxD | ExE | AxA | BxB | CxC | DxD | ExE | |
| 150x150 | 140 | 150 | 300 | 50 | 240 | 135 | 145 | 595 | 50 | 235 |
| 225x225 | 215 | 225 | 375 | 50 | 315 | 210 | 220 | 595 | 50 | 310 |
| 300x300 | 290 | 300 | 450 | 50 | 390 | 285 | 295 | 595 | 50 | 385 |
| 375x375 | 365 | 375 | 525 | 50 | 465 | 360 | 370 | 595 | 50 | 460 |
| 450x450 | 435 | 445 | 595 | 50 | 535 | - | - | - | - | - |
| 525x525 | 515 | 525 | 675 | 50 | 615 | - | - | - | - | - |
| 600x600 | 590 | 600 | 750 | 50 | 690 | - | - | - | - | - |
Operating data
Vk: effective speed (m/s)
m³/h: flow rate
Pa: pressure drops in Pascal
L(m): air throw in metres calculated on ceiling installation, terminal velocity 0.25 m/s
dB(A): noise level
| Models | sezione efficace m² | Vk (m/s) | 3 | 4 | 5 | 6 |
| EDQV 150x150 | 0,0110 | m3/h | 119 | 158 | 198 | 238 |
| L(m) | 0,8 | 1,1 | 1,4 | 1,6 | ||
| EDQV-PQ 150x150 | Pa | 5 | 10 | 16 | 22 | |
| dB(A) | 25 | 33 | 38 | 42 | ||
| EDQV 225x225 | 0,0240 | m3/h | 259 | 346 | 432 | 518 |
| L(m) | 1,1 | 1,7 | 2,1 | 2,5 | ||
| EDQV-PQ 225x225 | Pa | 5 | 13 | 23 | 30 | |
| dB(A) | 30 | 39 | 45 | 49 | ||
| EDQV 300x300 | 0,0380 | m3/h | 410 | 547 | 684 | 821 |
| L(m) | 1,7 | 2,2 | 2,5 | 3,3 | ||
| EDQV-PQ 300x300 | Pa | 7 | 10 | 13 | 23 | |
| dB(A) | 35 | 39 | 43 | 48 | ||
| EDQV 375x375 | 0,0620 | m3/h | 670 | 893 | 1116 | 1339 |
| L(m) | 2,0 | 2,5 | 3,3 | 3,9 | ||
| EDQV-PQ 375x375 | Pa | 7 | 12 | 19 | 25 | |
| dB(A) | 35 | 41 | 47 | 49 | ||
| EDQV 450x450 | 0,0850 | m3/h | 918 | 1224 | 1530 | 1836 |
| L(m) | 2,8 | 3,8 | 4,9 | 5,2 | ||
| Pa | 7 | 12 | 17 | 25 | ||
| dB(A) | 36 | 41 | 47 | 49 | ||
| EDQV 525x525 | 0,099 | m3/h | 1069 | 1426 | 1762 | 2138 |
| L(m) | 3,3 | 4,4 | 4,7 | 6,1 | ||
| Pa | 8 | 14 | 20 | 29 | ||
| dB(A) | 37 | 41 | 48 | 50 | ||
| EDQV 600x600 | 0,113 | m3/h | 1220 | 1627 | 2034 | 2441 |
| L(m) | 3,7 | 5,1 | 6,5 | 6,9 | ||
| Pa | 9 | 16 | 23 | 33 | ||
| dB(A) | 37 | 42 | 48 | 51 |
SC / SCN Regulation damper
Galvanised steel regulation damper with blades with opposing movement.

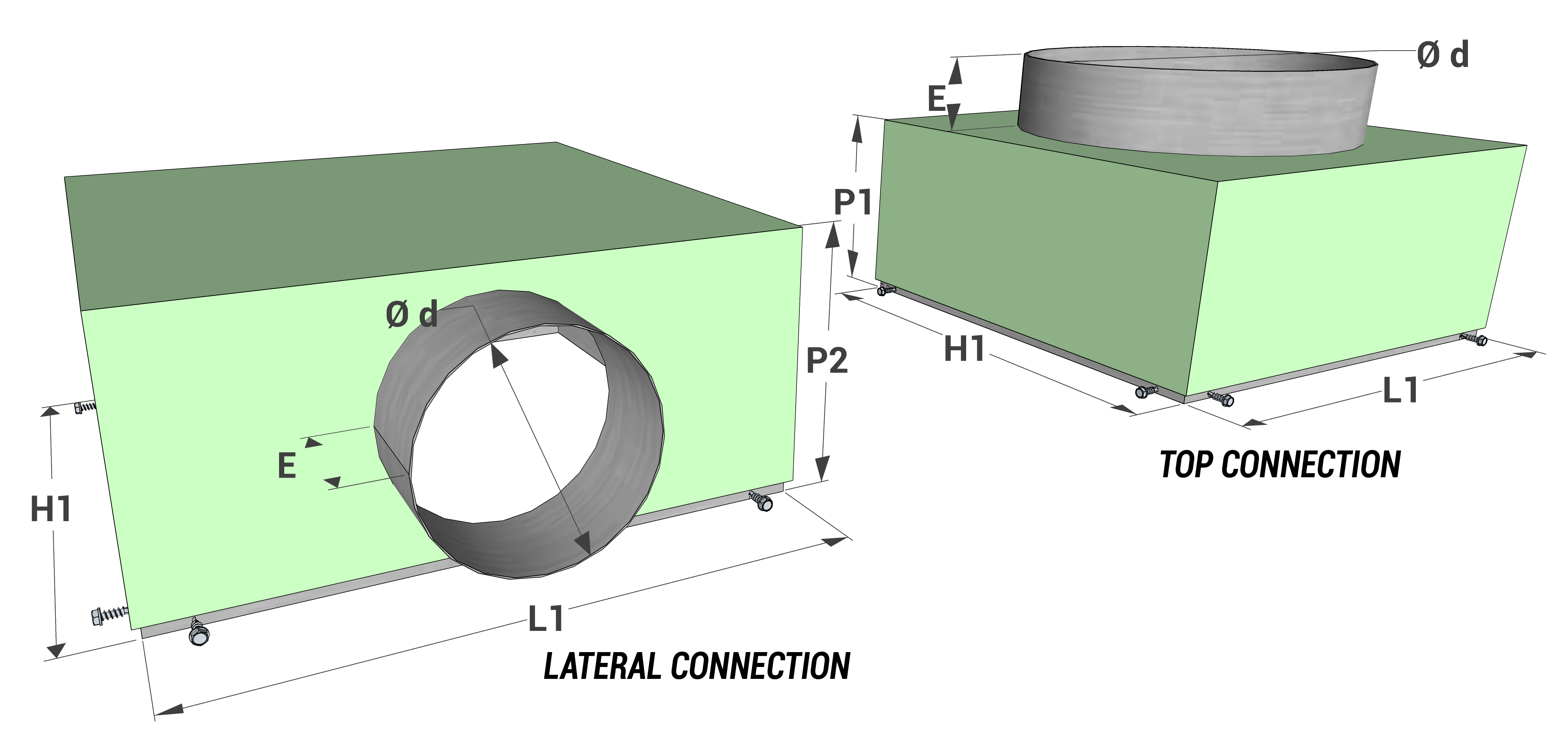

Plenum
| EDQV EDQV-PQ | L1 x H1 | Ø d | P1 | P2 | E |
| 150x150 | 155x155 | 125 | 200 | 245 | 50 |
| 225x225 | 230x230 | 150 | 200 | 270 | 50 |
| 300x300 | 305x305 | 200 | 200 | 320 | 50 |
| 375x375 | 380x380 | 200 | 200 | 320 | 50 |
| 450x450 | 450x450 | 250 | 200 | 370 | 50 |
| 525x525 | 530x530 | 250 | 200 | 370 | 50 |
| 600x600 | 605x605 | 300 | 200 | 400 | 50 |
Price list
| Models | diffusore EDQV | diffusore EDQV-PQ |
| euro | euro | |
| 150x150 | 32,00 | 94,13 |
| 225x225 | 43,56 | 99,16 |
| 300x300 | 63,76 | 107,18 |
| 375x375 | 69,89 | 112,26 |
| 450x450 | 78,07 | - |
| 525x525 | 108,36 | - |
| 600x600 | 133,00 | - |
Accessories
| dimensioni LxH | serranda SC EDQV | serranda SCN EDQV PQ | stacco laterale | stacco superiore | ||
| plenum zincato | PLENUM ISOLATO | plenum zincato | PLENUM ISOLATO | |||
| EPZ-EDQ | EPI-EDQ | EPZ-EDQ | EPI-EDQ | |||
| euro | euro | euro | euro | euro | euro | |
| 150x150 | 13,57 | 15,20 | 36,81 | 49,15 | 30,20 | 41,93 |
| 225x225 | 16,32 | 18,28 | 42,92 | 57,26 | 34,70 | 47,84 |
| 300x300 | 27,79 | 31,12 | 51,84 | 69,02 | 39,97 | 54,72 |
| 375x375 | 34,93 | 39,12 | 69,33 | 92,04 | 55,88 | 72,78 |
| 450x450 | 44,82 | - | 81,24 | 107,83 | 62,18 | 81,08 |
| 525x525 | 76,00 | - | 107,25 | 134,73 | 81,62 | 103,95 |
| 600x600 | 76,00 | - | 137,07 | 169,59 | 97,22 | 121,28 |
