EDQC1 Square diffuser with closed plate
Description
Square diffusers for ceiling installation with closed front plate.
Characteristics
Material: steel.
Finish: painted white RAL 9010.
Installation: by means of non-visible screws.
Finish: painted white RAL 9010.
Installation: by means of non-visible screws.
Use
Thanks to its special construction, it is a very versatile diffuser.
Recommended for both supply and exhaust air.
It can be supplied with various accessories that guarantee optimal diffuser operation.
Recommended for both supply and exhaust air.
It can be supplied with various accessories that guarantee optimal diffuser operation.

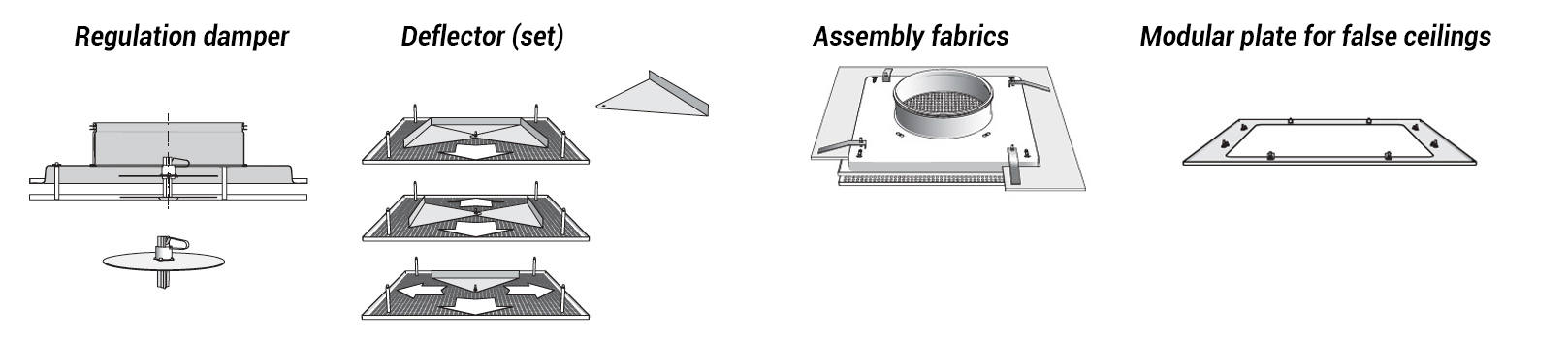

Accessories
- EPZ-DC galvanised plenum;
- EPI-DC insulated plenum;
- EDZ regulation damper;
- directional deflectors;
- mounting brackets;
- plate for false ceilings to install the diffuser on a modular false ceiling 600mm x 600mm.
- EPI-DC insulated plenum;
- EDZ regulation damper;
- directional deflectors;
- mounting brackets;
- plate for false ceilings to install the diffuser on a modular false ceiling 600mm x 600mm.
Dimensions
all dimensions are expressed in mm
| Models | Ød | AxA | UxU (dimensione del foro) | effective section | peso |
| mm | mm | mm | m² | Kg | |
| 125 | 125 | 235 | 200 | 0,011 | 1,0 |
| 160 | 160 | 295 | 260 | 0,016 | 1,5 |
| 200 | 200 | 395 | 360 | 0,022 | 2,4 |
| 250 | 250 | 495 | 460 | 0,033 | 3,2 |
| 315 | 315 | 595 | 560 | 0,041 | 4,4 |
| 400 | 400 | 595 | 560 | 0,042 | 4,6 |
Operating data
Vk: effective speed (m/s)
m³/h: flow rate
Pa: pressure drops in Pascal
L(m): air throw in metres calculated on ceiling installation, terminal velocity 0.20 m/s
dB(A): noise level
| Models | Vk | 2,5 | 3 | 3,5 | 4 | 5 | 6 | 7 |
| 125 | m³/h | 99 | 119 | 139 | 158 | 198 | 238 | 277 |
| L(m) | 1,9 | 2,3 | 2,6 | 2,8 | 3,5 | 4,2 | 4,7 | |
| Pa | 5 | 7 | 10 | 13 | 20 | 28 | 34 | |
| dB(A) | <20 | 22 | 26 | 28 | 35 | 40 | 47 | |
| 160 | m³/h | 144 | 173 | 202 | 230 | 288 | 346 | 403 |
| L(m) | 2 | 2,6 | 2,8 | 3,3 | 4 | 4,7 | 5,5 | |
| Pa | 5 | 6 | 9 | 13 | 17 | 25 | 34 | |
| dB(A) | <20 | <20 | <20 | 23 | 27 | 35 | 42 | |
| 200 | m³/h | 198 | 238 | 277 | 317 | 396 | 475 | 554 |
| L(m) | 2,34 | 2,7 | 3,1 | 3,6 | 4,3 | 5 | 5,8 | |
| Pa | 5 | 6 | 9 | 13 | 17 | 25 | 34 | |
| dB(A) | <20 | <20 | 25 | 27 | 34 | 40 | 45 | |
| 250 | m³/h | 297 | 356 | 416 | 475 | 594 | 713 | 832 |
| L(m) | 2,6 | 3,3 | 3,7 | 4,2 | 5 | 6 | 7 | |
| Pa | 5 | 6 | 9 | 13 | 18 | 27 | 34 | |
| dB(A) | <20 | 22 | 26 | 30 | 36 | 42 | 47 | |
| 315 | m³/h | 369 | 443 | 517 | 590 | 738 | 886 | 1033 |
| L(m) | 2,8 | 3,2 | 3,6 | 4 | 5,1 | 5,9 | 7 | |
| Pa | 5 | 7 | 10 | 13 | 19 | 29 | 37 | |
| dB(A) | <20 | 20 | 25 | 23 | 35 | 41 | 45 | |
| 400 | m³/h | 378 | 454 | 529 | 605 | 756 | 907 | 1058 |
| L(m) | 2,3 | 2,8 | 3,3 | 3,6 | 4,3 | 5,2 | 6 | |
| Pa | 5 | 6 | 9 | 12 | 17 | 25 | 31 | |
| dB(A) | <20 | <20 | 19 | 23 | 30 | 36 | 40 |
Accessories
Plenum EPZ-DC EPI-DC
All measurements are expressed in mm.
| Models | L | H | P | ØA2 Diffusore | ØB2 Tubo flessibile o rigido | C2 | D2 |
| 125 | 200 | 200 | 200 | 127 | 125 | 70 | 100 |
| 160 | 250 | 250 | 250 | 162 | 155 | 70 | 100 |
| 200 | 300 | 300 | 300 | 202 | 195 | 70 | 100 |
| 250 | 350 | 350 | 350 | 252 | 245 | 70 | 100 |
| 315 | 400 | 400 | 400 | 317 | 310 | 70 | 100 |
| 400 | 500 | 500 | 500 | 402 | 395 | 70 | 100 |
Price list
| Models | diffusore EDQC1 | serranda di regolazione EDZ | Deflettori | Staffe di montaggio | Piastra per controsoffitti | plenum zincato | PLENUM ISOLATO |
| EPZ-DC | EPI-DC | ||||||
| euro | euro | euro | euro | euro | euro | euro | |
| 125 | 181,04 | 45,26 | 42,19 | 63,29 | 187,46 | 56,76 | 83,93 |
| 160 | 209,29 | 61,19 | 44,21 | 63,29 | 187,46 | 63,14 | 85,27 |
| 200 | 264,50 | 65,02 | 52,65 | 63,29 | 187,46 | 71,86 | 96,61 |
| 250 | 314,58 | 72,67 | 57,79 | 63,29 | 187,46 | 95,57 | 123,97 |
| 315 | 383,92 | 83,51 | 82,54 | 63,29 | - | 107,56 | 139,61 |
| 400 | 404,46 | 94,34 | 84,38 | 63,29 | - | 142,45 | 183,34 |
