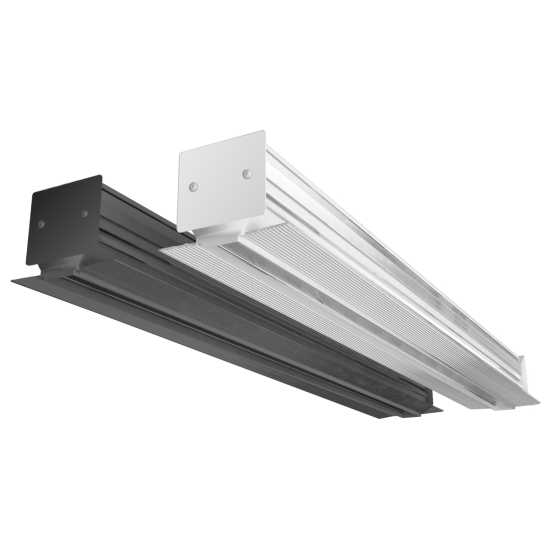

EDLS-EDLSB Hidden multi-slot linear diffusers

Description

Hidden linear diffuser with single or multi slots, width 20 or 30 mm, with aluminium aerodynamic profile and adjustable deflectors for optimal air throw control.
Also available with equalizer and sliding damper.

Features

Material: aluminium;
EDLS finish: RAL9005 black painted aluminium;
EDLsB finish: RAL9016 white painted aluminium;
Slots number: from 1 to 3;
Slots width: 20 or 30 mm;

Installation: by plenum box with mounting bridge, ceiling finishing with anti-crack tape on the frame and subsequent plaster skimming.

Possible dimensions in one piece:
- Minimum length 300 mm:
- Maximum length 2000 mm;

Use

Diffuser suitable for both air supply and exhaust in large rooms. Its modularity allows great freedom of design.

Models

-EDLS10-FA - EDLSB10-FA hidden linear diffusers 20 mm slot without deflectors (exhaust).
-EDLS20-FA - EDLSB20-FA hidden linear diffusers 20 mm slot with deflectors (supply).
-EDLS30-FA - EDLSB30-FA hidden linear diffusers 20 mm slot without deflectors, with sliding damper (exhaust).
-EDLS40-FA - EDLSB40-FA hidden linear diffusers 20 mm slot with deflectors and sliding damper (supply).
-EDLS10-FB - EDLSB10-FB hidden linear diffusers 30 mm slot without deflectors (exhaust).
-EDLS20-FB - EDLSB20-FB hidden linear diffusers 30 mm slot with deflectors (supply).
-EDLS30-FB - EDLSB30-FB hidden linear diffusers 30 mm slot without deflectors, with sliding damper (exhaust).
-EDLS40-FB - EDLSB40-FB hidden linear diffusers 30 mm slot with deflectors and sliding damper (supply).

Accessories

-galvanized plenum box;
-insulated plenum box;
-mounting bridge;
-continues line kit.

On demand

-Possibility of installation in continuity;
-Plenum box with ovalised rear connection.

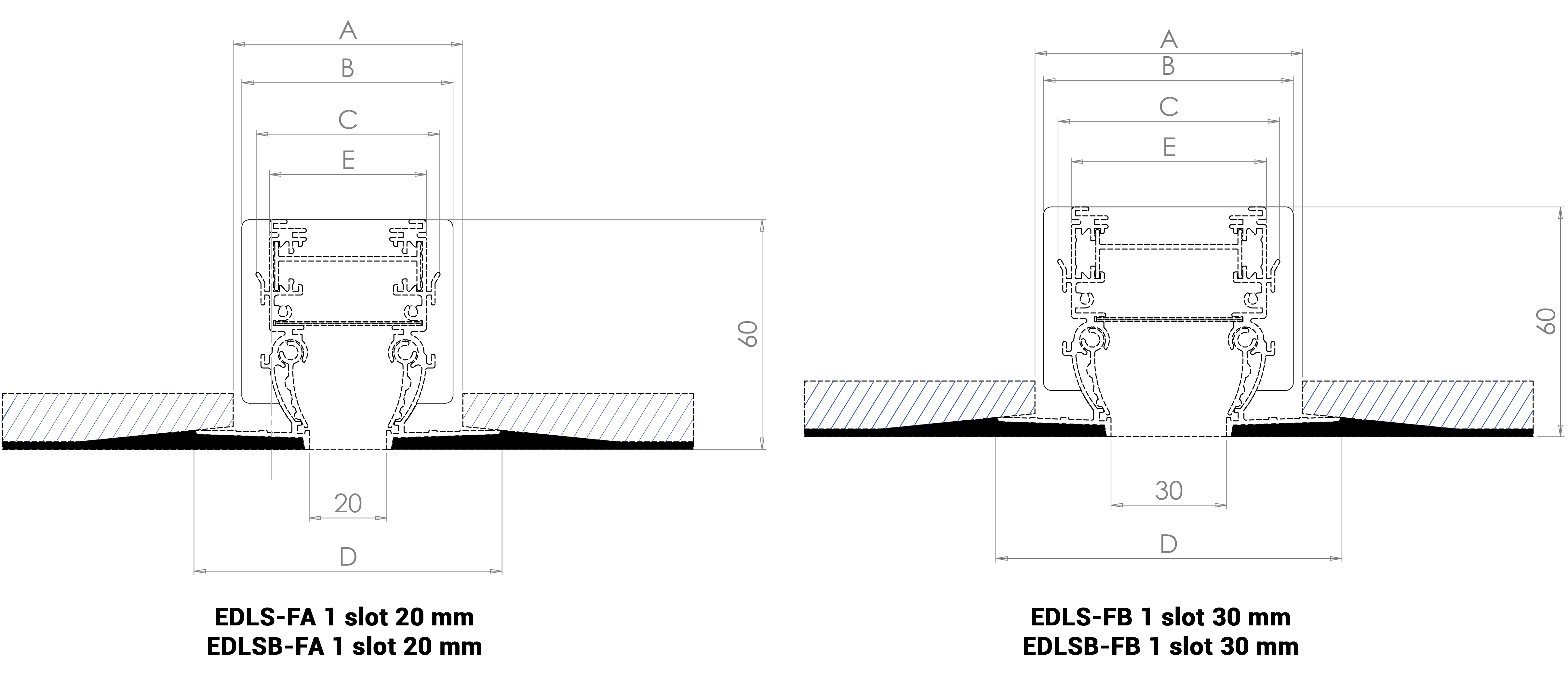

EDSH - EDLSB one slot dimensions

All dimensions are expressed in mm

feritoia	L	A	B	C	E	D	numero ponti di fissaggio

feritoia da 20 mm	800	60	55	48	41	80	2
	1000						2
	1200						2
	1500						2
	2000						2
feritoia da 30 mm	800	70	65	58	51	90	2
	1000						2
	1200						2
	1500						2
	2000						2

EDLS - EDLSB two slot dimensions

2 feritoie	L	A	B	C	D	E	numero ponti di fissaggio

feritoie da 20 mm	800	100	95	88	120	81	2
	1000						2
	1200						2
	1500						2
	2000						2
feritoie da 30 mm	800	120	115	108	140	101	2
	1000						2
	1200						2
	1500						2
	2000						2

EDLS - EDLSB three slot dimensions

3 feritoie	L	A	B	C	D	E	numero ponti di fissaggio

feritoie da 20 mm	800	140	135	128	160	121	2
	1000						2
	1200						2
	1500						2
	2000						3
feritoie da 30 mm	800	170	165	158	190	151	2
	1000						2
	1200						2
	1500						2
	2000						3

Operating data

Data referring to 1m long diffusers, with a terminal throw speed Vt=0.25 m/s, in ceiling installations and with lateral launch with coanda effect.

Data referring to diffusers without damper or with open sliding damper.
Data referring to diffusers with deflectors in the working position with a 50% reduction of the air passage surface.

The position of the deflectors reduces the effective cross-section. When the deflectors are fully open, or when the diffuser is used for exhaust air, the flow rates (expressed in m³/h) indicated in the table can change.

Vk: effective speed (m/s) m³/h: air flow rate
Pa: pressure drops in Pascal
L(m): air throw in meters
dB(A): noise level

feritoie	dimensioni feritoie	sezione efficace m²	portata aria e lancio
1 feritoia	feritoia da 20 mm	0,0097	m³/h	70	105	140	175	210	245
	feritoia da 20 mm	0,0097	L(m)	1.8	2.7	3.6	4.5	5.4	6.3
	feritoia da 30 mm	0,0146	m³/h	105	158	210	262	315	368
		0,0146	L(m)	1,6	2,5	3,4	4,2	5	5,8
		noise index	dB(A)	<20	22	32	37	44	48
2 feritoie	feritoie da 20 mm	0,0194	m³/h	140	210	280	350	420	490
	feritoie da 20 mm	0,0194	L(m)	2,6	3,9	5,1	6,4	7,7	9,0
	feritoie da 30 mm	0,0292	m³/h	210	316	420	524	630	736
		0,0292	L(m)	2,3	3,6	4,9	6,0	7,1	8,3
		noise index	dB(A)	<20	24	34	39	46	50
3 feritoie	feritoie da 20 mm	0,0291	m³/h	210	315	420	525	630	735
	feritoie da 20 mm	0,0291	L(m)	3,9	5,8	7,7	9,6	11,6	13,5
	feritoie da 30 mm	0,0438	m³/h	315	474	630	786	945	1104
		0,0438	L(m)	3,4	5,4	7,3	9,0	10,7	12,4
		noise index	dB(A)	<20	26	36	41	48	52
Vk			m/s	2	3	4	5	6	7
perdite di carico			Pa	7	15	26	41	59	80

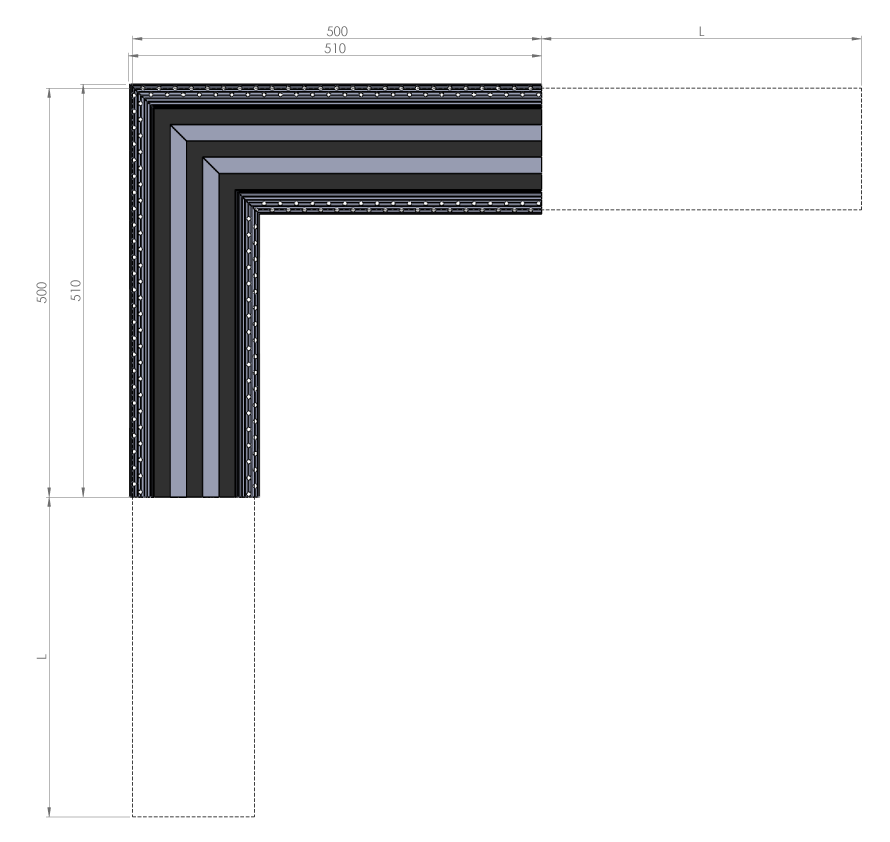

Corner connection

Aesthetic connecting element between the two linear diffuser lines with a 90° angle and 500 mm length on each side. It has no ventilation features.

All measurements are expressed in mm.

CORNER

Continuity kit

The continuity kit is an accessory required to create continuous lines of linear diffusers longer than 2 metres. It is made up of two junction plates that allow for the alignment and connection of two components of the line.

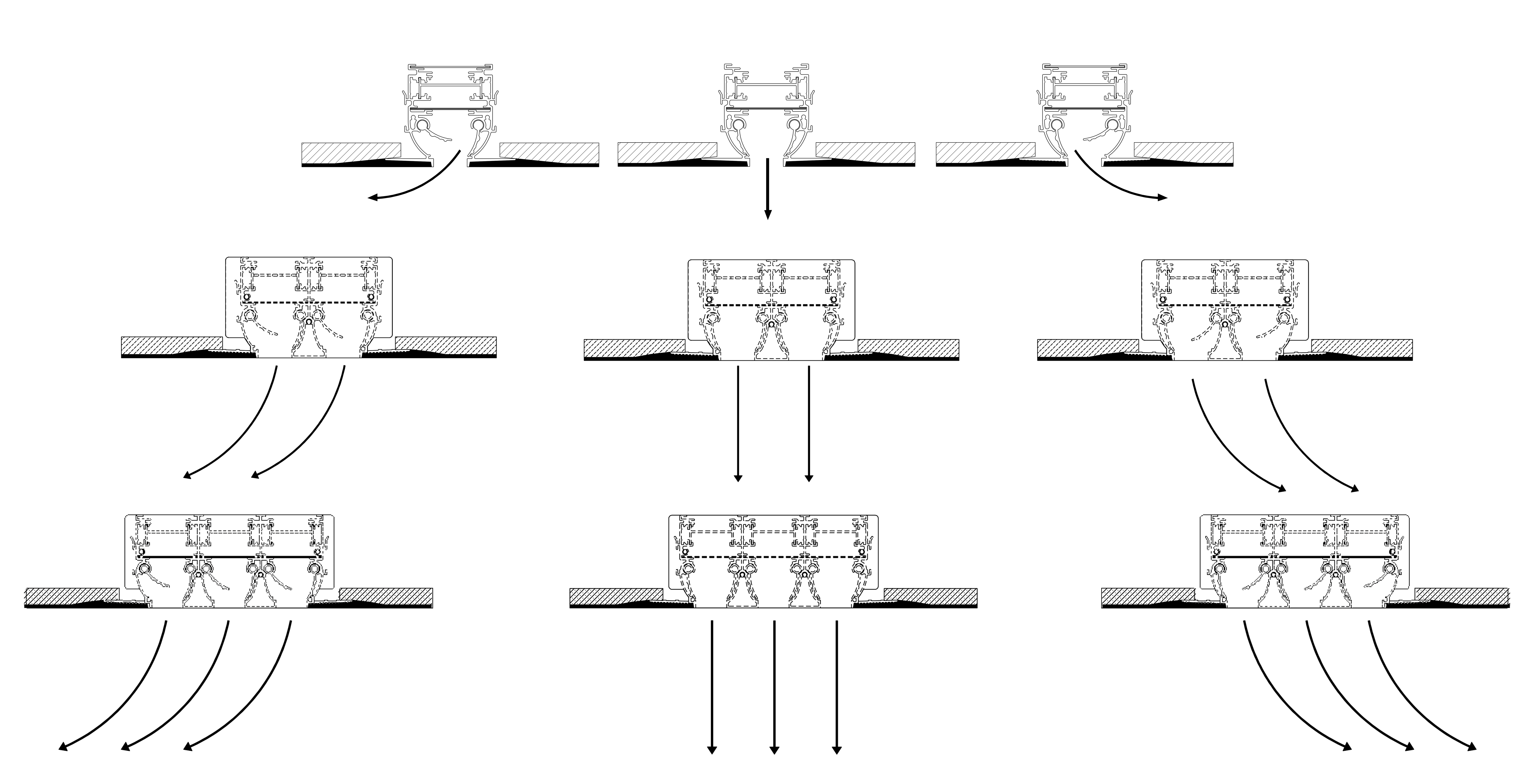

Air throw characteristics

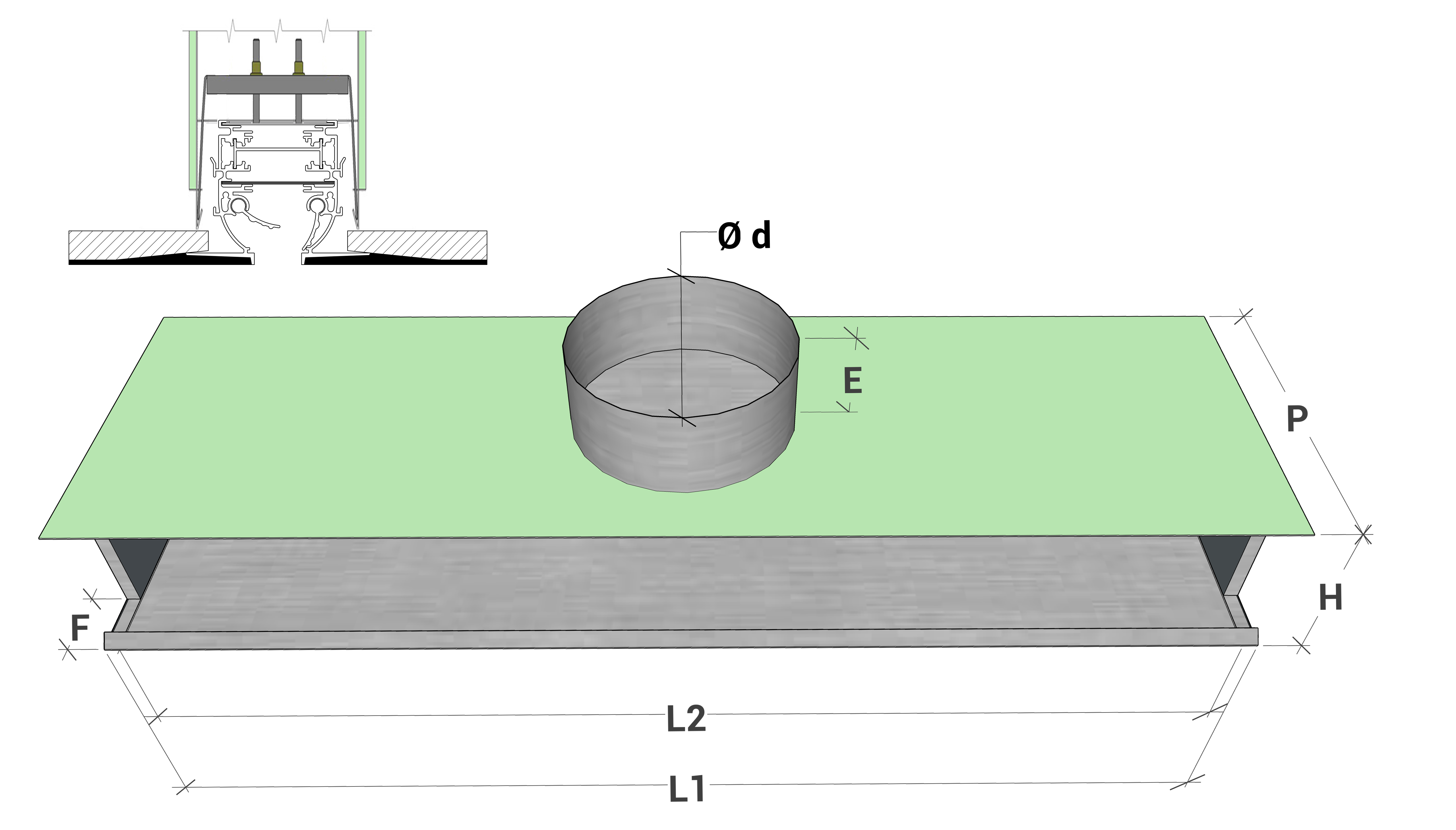

Plenum dimensions and fixing bracket system

1 feritoia	L	Dimensioni plenum
1 feritoia	L	L1	L2	Numero stacchi	Ø d	P	H	E	F
feritoia da 20 mm	800	800	770	1	145	240	65	80	49
	1000	1000	970	1
	1200	1200	1170	2
	1500	1500	1470	2
	2000	2000	1970	2
feritoia da 30 mm	800	800	770	1	145	240	75	80	49
	1000	1000	970	1
	1200	1200	1170	2
	1500	1500	1470	2
	2000	2000	1970	2

2 feritoie	L	Dimensioni plenum
2 feritoie	L	L1	L2	Numero stacchi	Ø d	P	H	E	F
feritoie da 20 mm	800	800	770	2	145	300	105	80	49
	1000	1000	970	2
	1200	1200	1170	2
	1500	1500	1470	2
	2000	2000	1970	2
feritoie da 30 mm	800	800	770	2	198	300	125	80	49
	1000	1000	970	2
	1200	1200	1170	2
	1500	1500	1470	2
	2000	2000	1970	2

3 feritoie	L	Dimensioni plenum
3 feritoie	L	L1	L2	Numero stacchi	Ø d	P	H	E	F
feritoie da 20 mm	800	800	770	2	198	300	145	80	49
	1000	1000	970	2
	1200	1200	1170	2
	1500	1500	1470	2
	2000	2000	1970	2
feritoie da 30 mm	800	800	770	2	198	300	165	80	49
	1000	1000	970	2
	1200	1200	1170	2
	1500	1500	1470	2
	2000	2000	1970	2

Price list for EDLS-FA - 1 slot - black RAL9005 - 20 mm slot

EDLS-FA	lunghezza	EDLS10-FA	EDLS20-FA	EDLS30-FA	EDLS40-FA	PLENUM	PLENUM ISOLATO
1 feritoia		euro	euro	euro	euro	euro	euro
feritoia da 20 mm	800	50,40	52,79	59,26	65,68	59,72	77,01
	1000	56,63	59,42	65,82	73,24	64,98	83,85
	1200	67,25	71,83	80,07	87,79	81,58	108,33
	1500	76,55	82,15	89,86	99,21	87,92	113,29
	2000	97,48	101,01	115,04	126,11	100,41	132,50

Price list for EDLS-FA - 2 slot - black RAL9005 - 20 mm slots

EDLS-FA	lunghezza	EDLS10-FA	EDLS20-FA	EDLS30-FA	EDLS40-FA	PLENUM	PLENUM ISOLATO
2 feritoie		euro	euro	euro	euro	euro	euro
feritoie da 20 mm	800	88,08	artDDS0010110	artDDS0010210	artDDS0010310	69,98	90,85
	1000	artDDS0010020	artDDS0010120	artDDS0010220	artDDS0010320	75,51	98,45
	1200	artDDS0010030	artDDS0010130	artDDS0010230	artDDS0010330	86,69	115,06
	1500	artDDS0010040	artDDS0010140	artDDS0010240	artDDS0010340	90,65	120,74
	2000	artDDS0010050	artDDS0010150	artDDS0010250	artDDS0010350	103,83	141,80

Price list for EDLS-FA - 3 slot - black RAL9005 - 20 mm slots

EDLS-FA	lunghezza	EDLS10-FA	EDLS20-FA	EDLS30-FA	EDLS40-FA	PLENUM	PLENUM ISOLATO
3 feritoie		euro	euro	euro	euro	euro	euro
feritoie da 20 mm	800	artDDS0020010	artDDS0020110	artDDS0020210	artDDS0020310	75,13	98,03
	1000	artDDS0020020	artDDS0020120	artDDS0020220	artDDS0020320	81,78	107,22
	1200	artDDS0020030	artDDS0020130	artDDS0020230	artDDS0020330	93,27	125,86
	1500	artDDS0020040	artDDS0020140	artDDS0020240	artDDS0020340	99,26	132,85
	2000	artDDS0020050	artDDS0020150	artDDS0020250	artDDS0020350	115,09	157,63

Price list for EDLS -FB - 1 slot - black RAL9005 - 30 mm slot

EDLS-FB	lunghezza	EDLS10-FB	EDLS20-FB	EDLS30-FB	EDLS40-FB	PLENUM	PLENUM ISOLATO
1 feritoia		euro	euro	euro	euro	euro	euro
feritoia da 30 mm	800	51,40	57,19	60,45	67,00	60,29	77,78
	1000	57,75	63,77	67,13	74,70	65,64	84,74
	1200	73,98	81,07	88,07	96,58	85,04	109,33
	1500	84,21	91,61	98,84	109,12	88,77	114,40
	2000	99,42	109,79	117,33	128,62	101,49	133,92

Price list for EDLS -FB - 2 slot - black RAL9005 - 30 mm slots

EDLS-FB	lunghezza	EDLS10-FB	EDLS20-FB	EDLS30-FB	EDLS40-FB	PLENUM	PLENUM ISOLATO
2 feritoie		euro	euro	euro	euro	euro	euro
feritoie da 30 mm	800	artDDS0010510	artDDS0010610	artDDS0010710	artDDS0010810	67,90	90,77
	1000	artDDS0010520	artDDS0010620	artDDS0010720	artDDS0010820	74,74	100,26
	1200	artDDS0010530	artDDS0010630	artDDS0010730	artDDS0010830	95,65	127,62
	1500	artDDS0010540	artDDS0010640	artDDS0010740	artDDS0010840	101,07	135,35
	2000	artDDS0010550	artDDS0010650	artDDS0010750	artDDS0010850	117,36	160,79

Price list for EDLS -FB - 3 slot - black RAL9005 - 30 mm slots

EDLS-FB	lunghezza	EDLS10-FB	EDLS20-FB	EDLS30-FB	EDLS40-FB	PLENUM	PLENUM ISOLATO
3 feritoie		euro	euro	euro	euro	euro	euro
feritoie da 30 mm	800	artDDS0020510	artDDS0020610	artDDS0020710	artDDS0020810	76,36	99,76
	1000	artDDS0020520	artDDS0020620	artDDS0020720	artDDS0020820	83,20	109,21
	1200	artDDS0020530	artDDS0020630	artDDS0020730	artDDS0020830	95,65	127,62
	1500	artDDS0020540	artDDS0020640	artDDS0020740	artDDS0020840	101,07	135,35
	2000	artDDS0020550	artDDS0020650	artDDS0020750	artDDS0020850	117,36	160,79

Price list for EDLSB-FA - 1 slot - white RAL9016 - 20 mm slot

EDLSB-FA	lunghezza	EDLSB10-FA	EDLSB20-FA	EDLSB30-FA	EDLSB40-FA	PLENUM	PLENUM ISOLATO
1 feritoia		euro	euro	euro	euro	euro	euro
feritoia da 20 mm	800	50,40	52,79	59,26	65,68	59,72	77,01
	1000	56,63	59,42	65,82	73,24	64,98	83,85
	1200	67,25	71,83	80,07	87,79	81,58	108,33
	1500	76,55	82,15	89,86	99,21	87,92	113,29
	2000	97,48	101,01	115,04	126,11	100,41	132,50

Price list for EDLSB-FA - 2 slot - white RAL9016 - 20 mm slots

EDLSB-FA	lunghezza	EDLSB10-FA	EDLSB20-FA	EDLSB30-FA	EDLSB40-FA	PLENUM	PLENUM ISOLATO
2 feritoie		euro	euro	euro	euro	euro	euro
feritoie da 20 mm	800	88,08	94,66	104,06	117,98	69,98	90,85
	1000	98,32	106,10	115,23	131,37	75,51	98,45
	1200	116,13	127,79	140,03	157,46	86,69	115,06
	1500	131,49	154,94	156,15	177,35	90,65	120,74
	2000	167,04	201,67	199,89	225,56	103,83	141,80

Price list for EDLSB-FA - 3 slot - white RAL9016 - 20 mm slots

EDLSB-FA	lunghezza	EDLSB10-FA	EDLSB20-FA	EDLSB30-FA	EDLSB40-FA	PLENUM	PLENUM ISOLATO
3 feritoie		euro	euro	euro	euro	euro	euro
feritoie da 20 mm	800	artDDS0024000	artDDS0024050	artDDS0024100	artDDS0024150	75,13	98,03
	1000	artDDS0024010	artDDS0024060	artDDS0024110	artDDS0024160	81,78	107,22
	1200	artDDS0024020	artDDS0024070	artDDS0024120	artDDS0024170	93,27	125,86
	1500	artDDS0024030	artDDS0024080	artDDS0024130	artDDS0024180	99,26	132,85
	2000	artDDS0024040	artDDS0024090	artDDS0024140	artDDS0024190	115,09	157,63

Price list for EDLSB -FB - 1 slot - white RAL9016 - 30 mm slot

EDLSB-FB	lunghezza	EDLSB10-FB	EDLSB20-FB	EDLSB30-FB	EDLSB40-FB	PLENUM	PLENUM ISOLATO
1 feritoia		euro	euro	euro	euro	euro	euro
feritoia da 30 mm	800	51,40	57,19	60,45	67,00	60,29	77,78
	1000	57,75	63,77	67,13	74,70	65,64	84,74
	1200	73,98	81,07	88,07	96,58	85,04	109,33
	1500	84,21	91,61	98,84	109,12	88,77	114,40
	2000	99,42	109,79	117,33	128,62	101,49	133,92

Price list for EDLSB-FB - 2 slot - white RAL9016 - 30 mm slots

EDLSB-FB	lunghezza	EDLSB10-FB	EDLSB20-FB	EDLSB30-FB	EDLSB40-FB	PLENUM	PLENUM ISOLATO
2 feritoie		euro	euro	euro	euro	euro	euro
feritoie da 30 mm	800	94,25	101,27	111,33	126,23	67,90	90,77
	1000	105,20	113,51	123,28	140,55	74,74	100,26
	1200	124,25	136,73	149,82	168,47	95,65	127,62
	1500	140,69	165,78	167,07	189,76	101,07	135,35
	2000	178,72	215,78	213,88	241,34	117,36	160,79

Price list for EDLSB-FB - 3 slot - white RAL9016 - 30 mm slots

EDLSB-FB	lunghezza	EDLSB10-FB	EDLSB20-FB	EDLSB30-FB	EDLSB40-FB	PLENUM	PLENUM ISOLATO
3 feritoie		euro	euro	euro	euro	euro	euro
feritoie da 30 mm	800	artDDS0024500	artDDS0024550	artDDS0024600	artDDS0024650	76,36	99,76
	1000	artDDS0024510	artDDS0024560	artDDS0024610	artDDS0024660	83,20	109,21
	1200	artDDS0024520	artDDS0024570	artDDS0024620	artDDS0024670	95,65	127,62
	1500	artDDS0024530	artDDS0024580	artDDS0024630	artDDS0024680	101,07	135,35
	2000	artDDS0024540	artDDS0024590	artDDS0024640	artDDS0024690	117,36	160,79

Price list

ponte di fissaggio e kit di continuità	euro
ponte di fissaggio per EDLS-FA EDLS-FB EDLSB-FA EDLSB-FB - 1 FERITOIA	11,87
ponte di fissaggio per EDLS-FA EDLSB-FA - 2 FERITOIE	11,87
ponte di fissaggio per EDLS-FB EDLSB-FB - 2 FERITOIE	11,87
ponte di fissaggio per EDLS-FA EDLSB-FA - 3 FERITOIE	11,87
ponte di fissaggio per EDLS-FB EDLSB-FB - 3 FERITOIE	11,87
kit di continuità	2,23

Aesthetic corner price list

Angolo estetico senza deflettori	EDLS-FA	EDLS-FB	EDLSB-FA	EDLSB-FB
Angolo estetico senza deflettori	euro	euro	euro	euro
1 feritoia	113,27	115,50	113,27	115,50
2 feritoie	196,65	210,40	196,65	210,40
3 feritoie	258,09	276,12	258,09	276,12
kit di continuità	2,23	2,23	2,23	2,23

Phone *

Company

City *

Province *

Operating sector *

Other *

Your message *

I confirm that I have read and accepted the Privacy Policy

EDLS-EDLSB Hidden multi-slot linear diffusers

Description

Features

Use

Models

Accessories

On demand

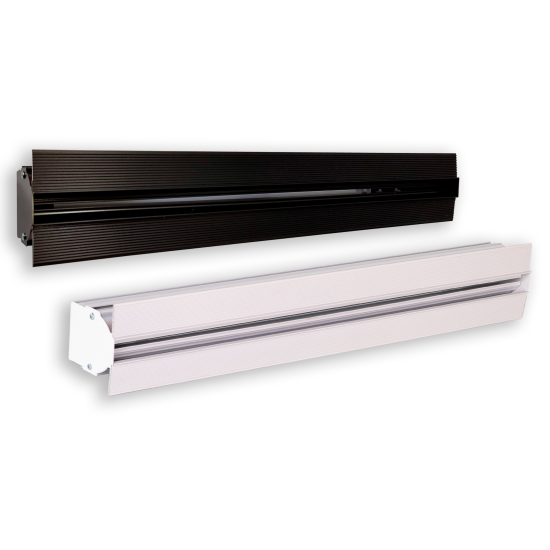

EDSH - EDLSB one slot dimensions

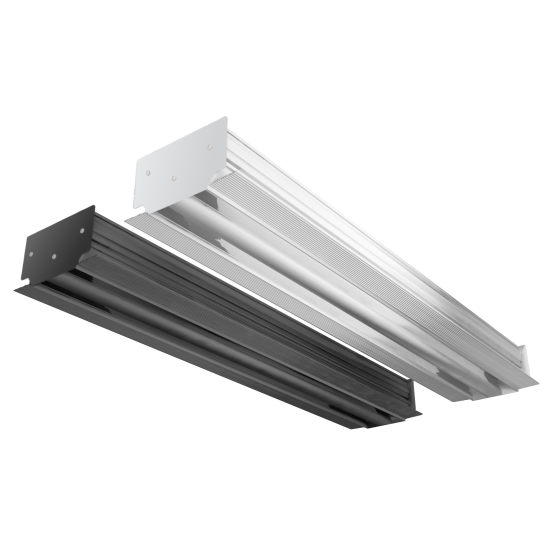

EDLS - EDLSB two slot dimensions

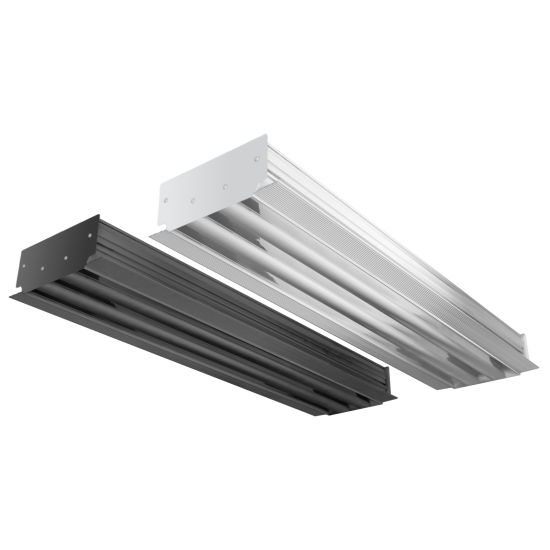

EDLS - EDLSB three slot dimensions

Operating data

Corner connection

CORNER

Continuity kit

Air throw characteristics

Plenum dimensions and fixing bracket system

Price list for EDLS-FA - 1 slot - black RAL9005 - 20 mm slot

Price list for EDLS-FA - 2 slot - black RAL9005 - 20 mm slots

Price list for EDLS-FA - 3 slot - black RAL9005 - 20 mm slots

Price list for EDLS -FB - 1 slot - black RAL9005 - 30 mm slot

Price list for EDLS -FB - 2 slot - black RAL9005 - 30 mm slots

Price list for EDLS -FB - 3 slot - black RAL9005 - 30 mm slots

Price list for EDLSB-FA - 1 slot - white RAL9016 - 20 mm slot

Price list for EDLSB-FA - 2 slot - white RAL9016 - 20 mm slots

Price list for EDLSB-FA - 3 slot - white RAL9016 - 20 mm slots

Price list for EDLSB -FB - 1 slot - white RAL9016 - 30 mm slot

Price list for EDLSB-FB - 2 slot - white RAL9016 - 30 mm slots

Price list for EDLSB-FB - 3 slot - white RAL9016 - 30 mm slots

Price list

Aesthetic corner price list

Scheda tecnica EDLS-EDLSB rev 2-2025 IT

Technical data sheetEDLS-EDLSB rev 2-2025 EN

Price list

List without prices

Price list English

List without prices English
