EDFLN EDFLBN Linear slot diffusers with rotating PVC deflectors

Immagine
Immagine

Description

Aluminum diffuser with adjustable rotating deflectors for optimal air throw control.
Also available with sliding regulation damper.

Features

Material: aluminium.
Finish: natural anodised.
Supports: black ABS.
Deflectors: black PVC.
Installation: duct or plenum box.

Use

Diffuser suitable for both air supply and exhaust in large rooms; its modularity allows for great freedom of design.

Models

EDFLN-10 exhaust diffusers (without deflectors).
EDFLN-20 supply diffusers with black ABS deflectors.
EDFLBN-20 white RAL9010 supply diffusers with black ABS deflectors.
EDFLN-40 supply diffusers with black ABS deflectors and sliding damper.
EDFLBN-40 white RAL9010 supply diffusers with black ABS deflectors and sliding damper.
EDFLN-50 supply diffusers with black ABS deflectors, equaliser and sliding damper.
EDFLBN-50 white RAL9010 supply diffusers with black ABS deflectors, equaliser and sliding damper.

Accessories

- galvanized plenum box;
- insulated plenum box;
- 90° corner connection;
- continues line kit.

On request

White ABS deflectors.

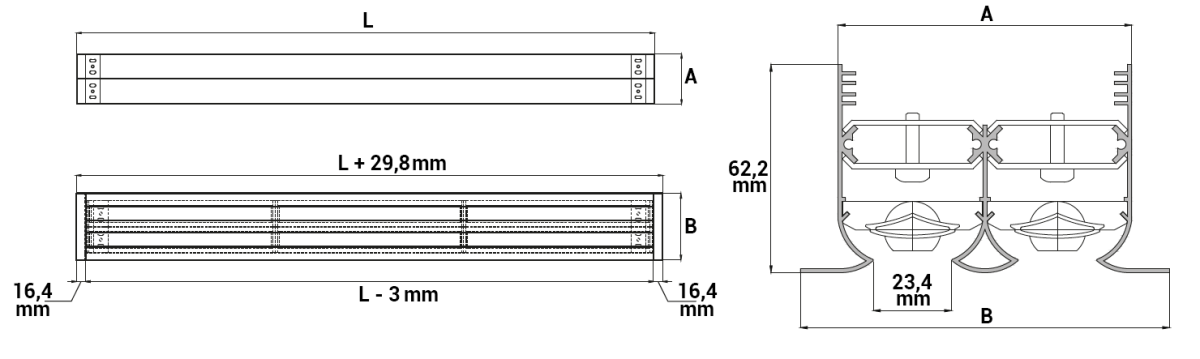

Linear diffuser dimensions

all dimensions are expressed in mm

numero
feritoie		LABnumero ponti di fissaggio
1 feritoia80044,4672
2 feritoie87,6110,22
3 feritoie130,8153,42
4 feritoie174196,62
1 feritoia100044,4672
2 feritoie87,6110,22
3 feritoie130,8153,42
4 feritoie174196,62
1 feritoia150044,4673
2 feritoie87,6110,23
3 feritoie130,8153,43
4 feritoie174196,63
1 feritoia200044,4674
2 feritoie87,6110,24
3 feritoie130,8153,44
4 feritoie174196,64

Operating data

Data referring to 1m long diffusers
Vk: effective speed (m/s)
m³/h: air flow rate
Pa: pressure drops in Pascal
Lo(m): horizontal air throw in metres calculated on ceiling flush installation and terminal velocity 0.25 m/s
Lv(m): vertical air throw in metres calculated on ceiling flush installation and terminal velocity 0.25 m/s
dB(A): noise level

numero
feritoie		sezione efficace m²portata aria, lancio e perdita di carico
1 feritoia0,0099m3/h72107143179215251287
Pa491524354761
Lo(m)2,64,05,36,67,99,210,5
Lv(m)1,82,83,74,65,56,57,4
2 feritoie0,0199m3/h143215287358430501573
Pa5101829415674
Lo(m)3,85,67,59,411,313,215,1
Lv(m)2,64,05,36,67,99,210,5
3 feritoie0,0298m3/h215322430537645752860
Pa61426405879103
Lo(m)4,46,78,911,113,315,617,8
Lv(m)3,14,76,27,89,310,912,4
4 feritoie0,0398m3/h28743057371686010031146
Pa1023416492125163
Lo(m)5,07,610,112,615,117,620,2
Lv(m)3,55,37,18,810,612,414,1
Vkm/s2345678
noise indexdB(A)25-3030-3535-4040-4542-4845-5050-55

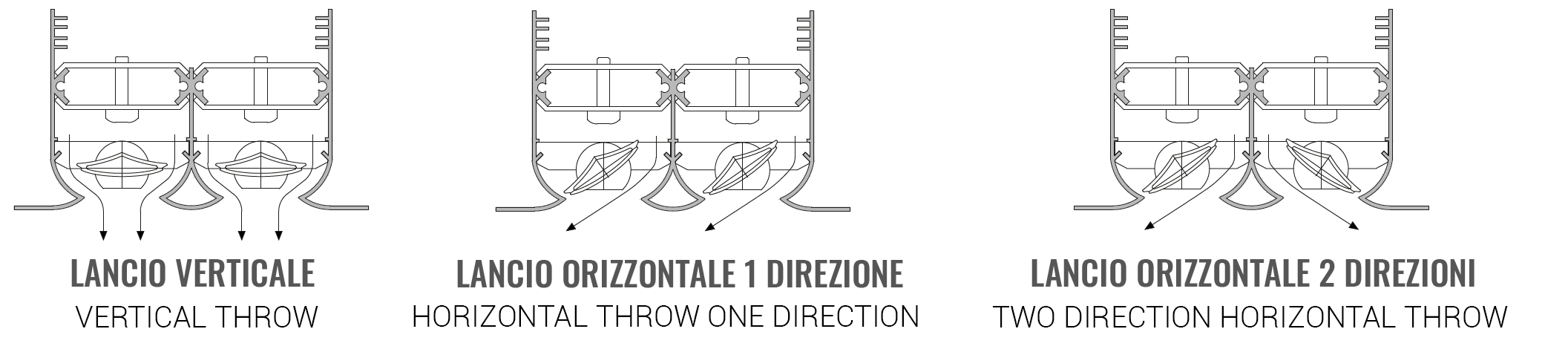

Air throw characteristics

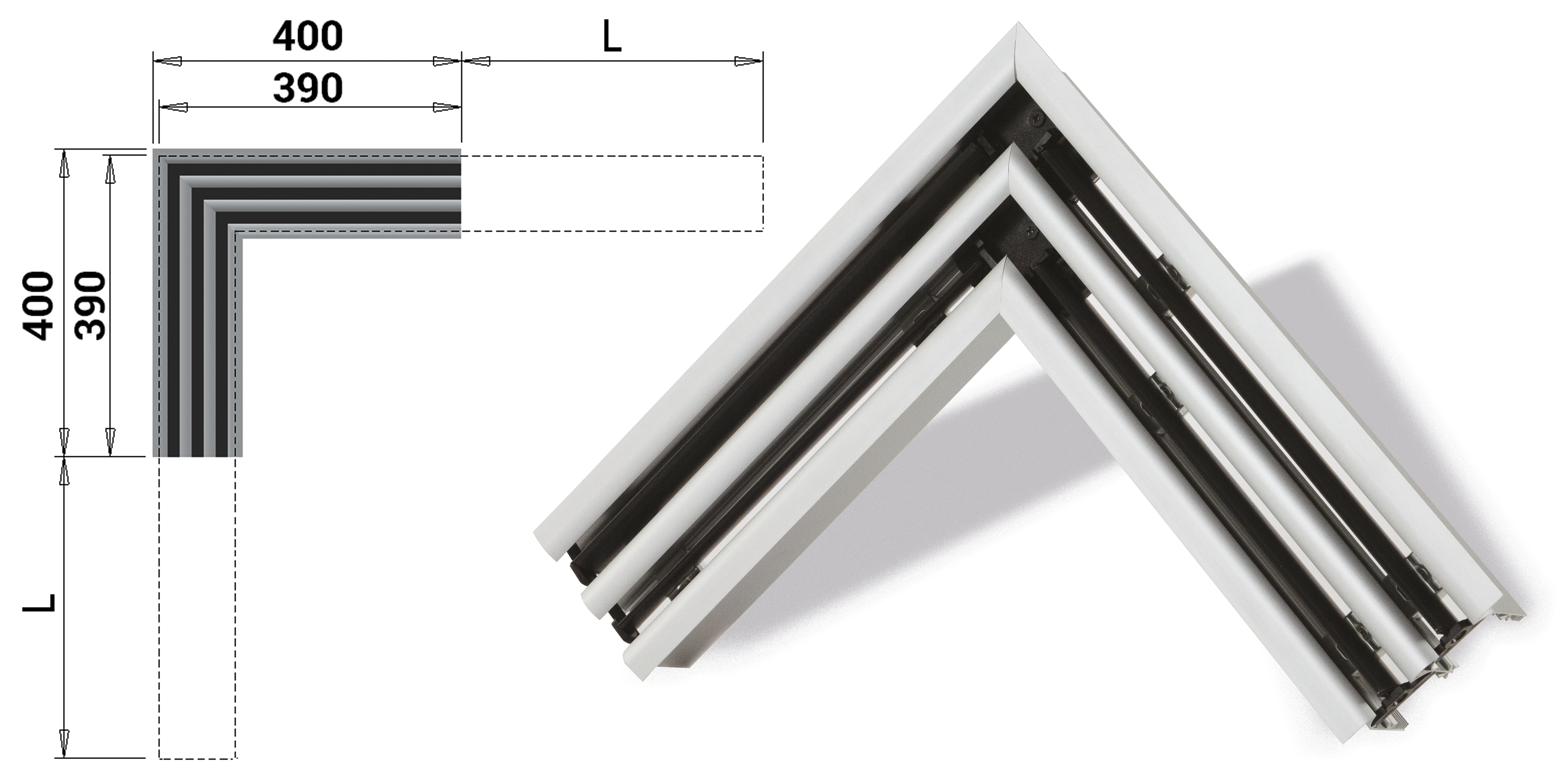

Corner connection

Aesthetic connecting element between the two linear diffuser lines with a 90° angle and 400 mm length on each side.
All measurements are expressed in mm.

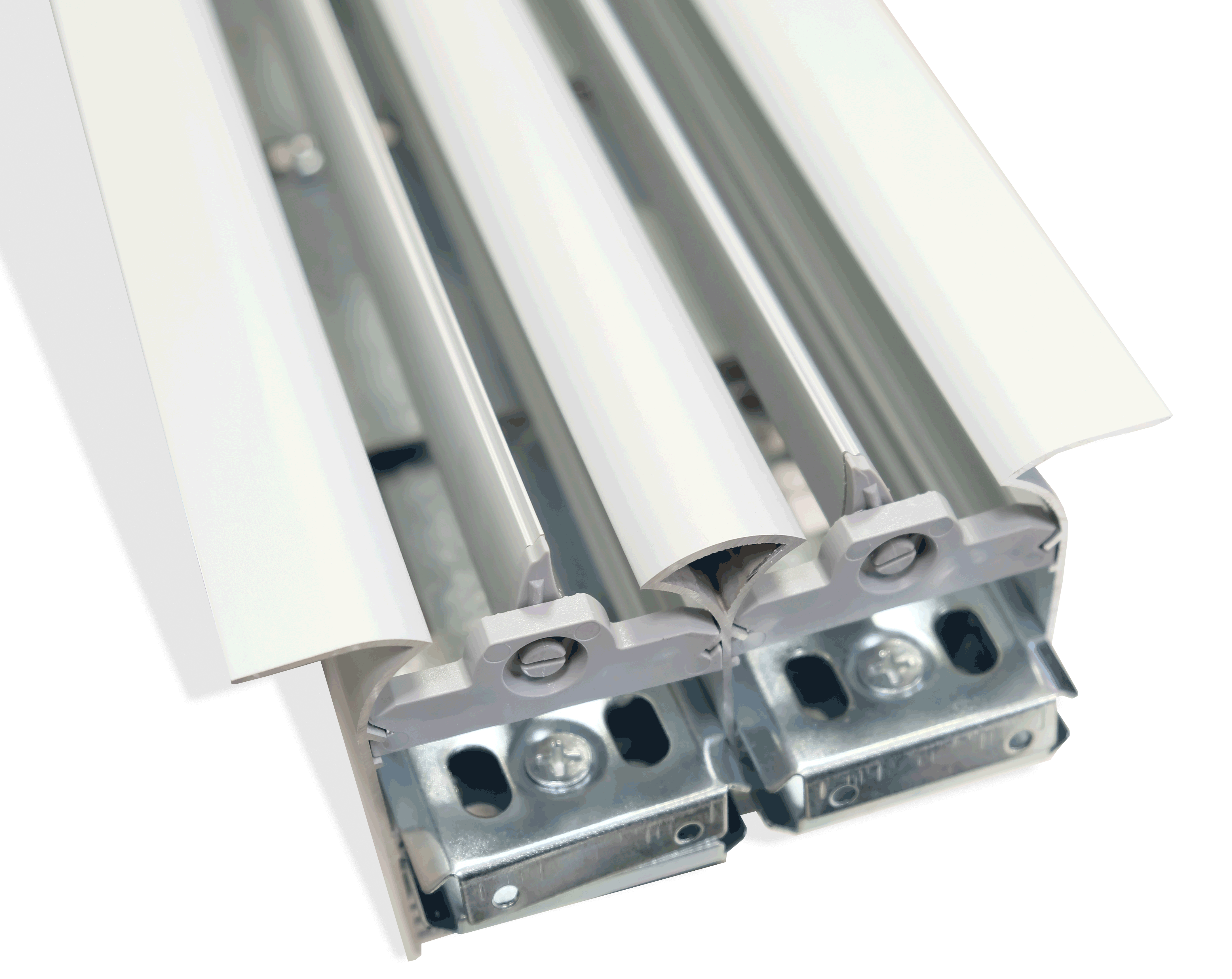

Continues Line kit

The continues line kit is an accessory required to create continuous lines of linear diffusers longer than 2 meters. It is made up of two junction plates that allow for the alignment and connection of two components of the line.

Equalizer and sliding damper:

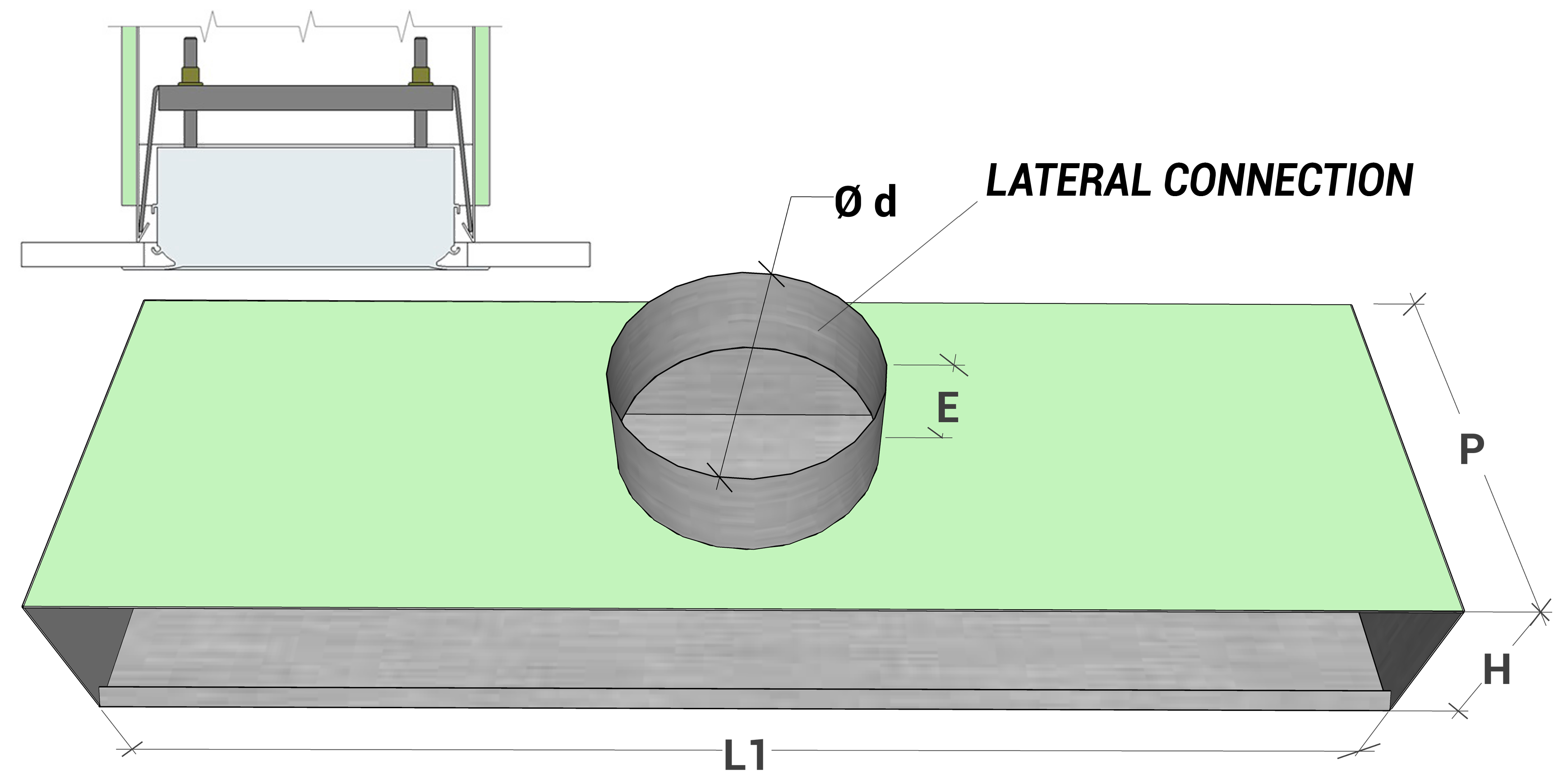

Plenum dimensions and mounting bridges system

all dimensions are expressed in mm

numero
feritoie		L Dimensioni plenum
L1Numero stacchiØ dPHE
1 feritoia80081511232005980
100010151
150015152
200020152
2 feritoia800815114824010280
100010151
150015152
200020152
3 feritoia800815114824014580
100010151
150015152
200020152
4 feritoia800815119828518980
100010151
150015152
200020152

Price list

For dimensions other than those indicated: 15% increase compared to the bigger dimension indicated in the table

ModelsEDFLN-10EDFLN-20EDFLN-40EDFLN-50PLENUMPLENUM ISOLATO
euroeuroeuroeuroeuroeuro
1
feritoia		80047,18 53,12 66,10 74,89 55,11 70,55
100052,86 63,53 80,63 90,97 61,10 78,51
150076,06 89,96 111,16 125,13 77,32 99,84
200094,79 111,84 138,15 155,94 98,95 129,54
2
feritoie		80069,38 81,25 104,45 120,25 58,45 74,86
100077,45 98,57 125,13 143,55 66,71 85,35
1500110,21 137,99 172,91 197,50 84,54 108,52
2000136,94 171,04 214,24 245,24 107,75 140,19
3
feritoie		80091,80 109,60 144,53 167,26 61,83 79,16
1000101,84 133,84 173,54 199,99 71,09 90,85
1500144,57 186,27 237,89 273,10 90,50 115,94
2000179,30 230,46 295,23 339,40 115,29 149,53
4
feritoie		800119,77 143,52 190,11 219,81 67,17 85,58
1000126,55 169,68 222,33 256,82 74,32 95,11
1500178,31 233,91 303,71 349,58 94,69 121,55
2000221,42 289,66 376,13 433,36 120,44 156,40

White painted version price list

ModelsEDFLBN-10EDFLBN-20EDFLBN-40EDFLBN-50PLENUMPLENUM ISOLATO
euroeuroeuroeuroeuroeuro
1
feritoia		80071,33 74,54 87,53 96,32 55,11 70,55
100074,32 84,98 102,08 112,41 61,10 78,51
150097,52 111,43 132,61 146,59 77,32 99,84
2000121,08 138,12 164,44 182,18 98,95 129,54
2
feritoie		80090,81 102,71 125,93 141,68 58,45 74,86
100098,68 120,02 146,59 164,98 66,71 85,35
1500131,64 159,45 194,37 218,96 84,54 108,52
2000163,22 197,32 240,53 271,48 107,75 140,19
3
feritoie		800113,25 131,07 165,98 188,74 61,83 79,16
1000123,29 155,29 195,02 221,43 71,09 90,85
1500165,98 207,75 259,37 294,58 90,50 115,94
2000205,59 256,75 321,50 365,70 115,29 149,53
4
feritoie		800141,23 164,98 211,57 241,29 67,17 85,58
1000148,01 190,68 243,32 277,79 74,32 95,11
1500199,80 255,39 325,20 371,06 94,69 121,55
2000247,72 315,95 402,41 459,62 120,44 156,40

ponte di fissaggioeuro
1 feritoia6,72
2 feritoie6,72
3 feritoie6,72
4 feritoie6,72

Accessory price list

AngolareEDFLN con deflettoriEDFLBN con deflettori
euroeuro
1 feritoia98,67 131,99
2 feritoie130,06 158,37
3 feritoie161,44 187,32
4 feritoie192,83 216,69
kit di continuità13,63 13,63
