EDE2S High Induction Swirl Diffuser
High induction swirl diffusers with adjustable aerodynamic profile deflectors
Description
EDE2S - High induction swirl diffusers with adjustable deflectors on square panel.
Features
Material: galvanized steel panel and ABS deflectors.
Finish:
- white RAL 9016 painted panel;
- black ABS deflectors.
Installation on plenum with lateral non-visible screws or with internal bracket in the plenum and central hole on the diffuser (screw and cap for installation with fixing bracket supplied with the diffuser).
Use
Swirl diffuser suitable for installation in rooms with a height between 2.6 and i 4.1 m, both in heating and cooling mode.
Accessories
- EPZ-EDE galvanized plenum box with damper and mounting bridge;
- EPZ-EDE-EQ galvanized plenum box with damper, equalizer and mounting bridge;
- EPI-EDE insulated galvanized plenum box with damper and fixing bracket;
- EPI-EDE-EQ insulated galvanized plenum box with damper, equalizer and mounting bridge.
Special executions
Panel colour on request.
Notes
The plenums available in stock are insulated, complete with damper, lateral connection and fixing kit.
Diffuser dimensions:
| Models EDE2S | L x H (mm) |
| 600 | 595x595 |
Operating data
Vk: effective speed (m/s)
m³/h: flow rate
Pa: pressure drops in Pascal
L(m): air throw in metres calculated on ceiling installation, terminal velocity 0.25 m/s
dB(A): noise level
| Models | effective section | Vk | 2 | 3 | 4 | 5 | 6 | number of deflectors |
| m² | ||||||||
| 600 | 0,0431 | m³/h | 310 | 465 | 620 | 775 | 930 | 24 |
| Pa | 3 | 7 | 14 | 24 | 38 | |||
| L(m) | 1,8 | 2,6 | 3,5 | 4,4 | 5,3 | |||
| noise index | dB(A) | 20 | 25 | 30 | 35 | 40 | ||

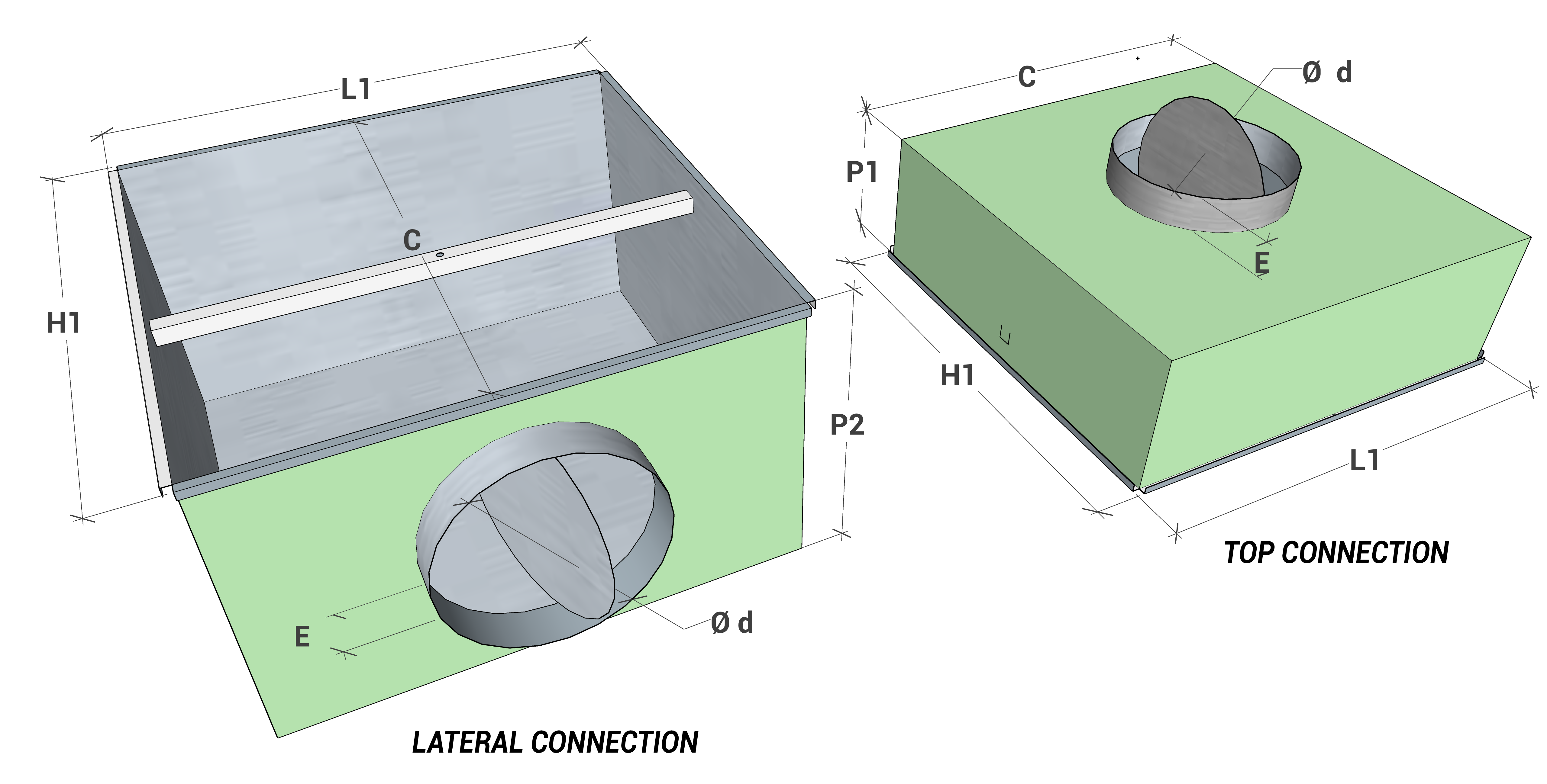

Plenum box dimensions
All dimensions are expressed in mm
| Models | Dimensioni esterne L1 x H1 | Ø d | P1 | P2 | 〼 C | E |
| 600 | 592x592 | 248 | 200 | 350 | 560 | 50 |
Price list
| Models | 600 |
| euro | |
| EDE2S | 121,29 |
Price list for plenum box with lateral connection
For plenum box with top connection, price on request
| Models | Descrizione | 600 |
| euro | ||
| EPZ-EDE | Plenum Box in galv.steel for diffuser | 124,93 |
| EPZ-EDE-EQ | Plenum zincato con serranda, ponte di fissaggio ed equalizzatore | 155,56 |
| EPI-EDE | Plenum zincato ISOLATO con serranda e ponte di fissaggio | 153,14 |
| EPI-EDE-EQ | Plenum zincato ISOLATO con serranda, ponte di fissaggio ed equalizzatore | 184,96 |
