EDE1 - EDE1R High Induction Swirl Diffuser

High induction swirl diffusers with adjustable aerodynamic profile deflectors.

Immagine
Plenum
Deflettori EDE per lancio orizzontale
Deflettori EDE per lancio verticale
Immagine
Plenum
Deflettori EDE per lancio orizzontale
Deflettori EDE per lancio verticale

Description

EDE1 - High induction swirl diffusers with adjustable deflectors on square panel.

EDE1R - High induction swirl diffusers with adjustable deflectors on circular panel.

Features

Material: galvanized steel panel and ABS deflectors.

Finish:

  • white RAL 9016 painted panel;
  • black ABS deflectors.

Installation on plenum with lateral non-visible screws or with internal bracket in the plenum and central hole on the diffuser (screw and cap for installation with fixing bracket supplied with the diffuser).

Use

Swirl diffusers suitable for installation in rooms with a height between 2.5 and 4 m, both in heating and cooling mode.

Accessories

  • EPZ-EDE galvanized plenum box with damper and mounting bridge;
  • EPZ-EDE-EQ galvanized plenum box with damper, equalizer and mounting bridge;
  • EPI-EDE insulated galvanized plenum box with damper and fixing bracket;
  • EPI-EDE-EQ insulated galvanized plenum box with damper, equalizer and mounting bridge.

Special executions

Panel colour on request.

Notes

The plenum boxes available in stock are insulated, with damper, lateral connection and fixing kit.

Diffuser dimensions

Models EDE1L x H (mm)
300295x295
400395x395
500495x495
600595x595
625620x620
800795x795

Operating data

Vk: effective speed (m/s)
m³/h: flow rate
Pa: pressure drops in Pascal
L(m): air throw in metres calculated on ceiling installation, terminal velocity 0.25 m/s
dB(A): noise level

Modelseffective sectionVk23456number of deflectors
m²
3000,0081m³/h60901201451758
Pa511203247
L(m)0,91,31,72,22,9
4000,0164m³/h12017523529535512
Pa511203247
L(m)1,11,62,12,73,3
5000,0354m³/h25538051063576524
Pa512213348
L(m)1,62,43,13,94,8
6000,0506m³/h365545730910109028
Pa512213348
L(m)1,92,83,74,75,6
6250,0506m³/h365545730910109028
Pa512213348
L(m)1,92,83,74,75,6
8000,0787m³/h56585011351415170028
Pa512213348
L(m)2,43,64,85,97,2
noise indexdB(A)2025303540

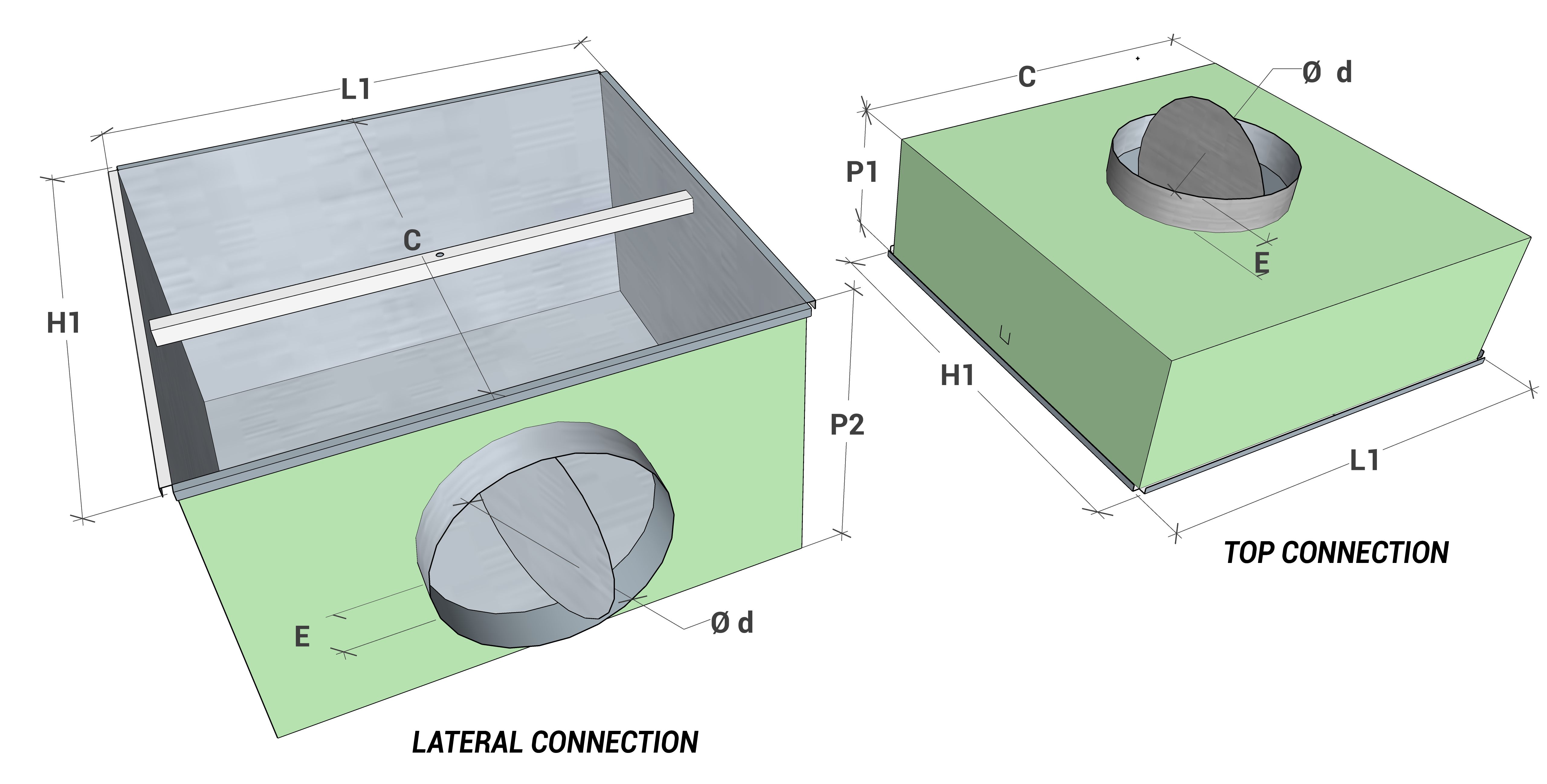

Plenum box dimensions

All dimensions are expressed in mm

Models plenumCompatible diffuser typeDimensioni esterne L1 x H1Ø dP1P2〼 CE
300EDE1 300292x29214620025026050
EDE1 300/600
400EDE1 400392x39219820030036050
EDE1 400/600
500EDE1 500492x49219820030046050
EDE1 500/600
600EDE1 600592x59224820035056050
EDE1 300/600
EDE1 400/600
EDE1 500/600
625EDE1 625617x61724820035058550
800EDE1 800792x79229825040076050

Price list

Models300/600400/600500/600
euroeuroeuro
EDE149,98 55,20 74,65

Price of EDE1R on request

Models300400500600625800
euroeuroeuroeuroeuroeuro
EDE140,41 45,62 66,48 69,68 115,62 187,14

Price list for plenum box with lateral connection

For plenum box with top connection, prices on request
For EDE1R plenum box, prices on request

ModelsDescrizione300400500600625800
euroeuroeuroeuroeuroeuro
EPZ-EDEPlenum Box in galv.steel for diffuser76,51 90,96 106,02 124,93 156,25 290,28
EPZ-EDE-EQPlenum zincato con serranda, ponte di fissaggio ed equalizzatore88,69 104,49 125,32 155,56 188,76 258,93
EPI-EDEPlenum zincato ISOLATO con serranda e ponte di fissaggio90,23 110,52 130,16 153,14 194,91 262,39
EPI-EDE-EQPlenum zincato ISOLATO con serranda, ponte di fissaggio ed equalizzatore102,87 124,59 150,18 184,96 225,69 312,04
