EDE-FB Fixed geometry swirl diffusers
Description
High induction swirl diffusers on 600x600 square panel with fixed curved deflectors.
Characteristics
Material: steel.
Finish: painted white RAL 9016.
Installation: with lateral or central screws on plenum fixing bracket.
Finish: painted white RAL 9016.
Installation: with lateral or central screws on plenum fixing bracket.
Use
Diffuser suitable for installation heights between 2.6 and 4 m.
Accessories
- EPZ-EDE-FB galvanised plenum with damper and fixing bracket;
- EPI-EDE-FB INSULATED galvanised plenum with damper and fixing bracket;
- Screw and cap.
- EPI-EDE-FB INSULATED galvanised plenum with damper and fixing bracket;
- Screw and cap.
Dimensions
all dimensions are expressed in mm
| Models | L x H | ØD | C1 |
| 300 / 598 | 598x598 | 90 | 260 |
| 400 / 598 | 598x598 | 117 | 337 |
| 500 / 598 | 598x598 | 153 | 440 |
| 600 / 598 | 598x598 | 178 | 537 |
Operating data
Vk: effective speed (m/s)
m³/h: flow rate
Pa: pressure drops in Pascal
L(m): air throw in metres calculated on ceiling installation, terminal velocity 0.25 m/s
dB(A): noise level
| Models | effective section | Vk | 2 | 3 | 4 | 5 | 6 | 7 |
| m² | ||||||||
| 300 / 598 | 0,0102 | m³/h | 74 | 110 | 147 | 184 | 220 | 257 |
| Pa | 4 | 9 | 16 | 25 | 36 | 49 | ||
| L(m) | 1,2 | 1,7 | 2,3 | 2,9 | 3,4 | 4,0 | ||
| dB(A) | <20 | 22 | 24 | 28 | 34 | 37 | ||
| 400 / 598 | 0,0175 | m³/h | 126 | 189 | 252 | 315 | 378 | 441 |
| Pa | 4 | 9 | 16 | 26 | 37 | 51 | ||
| L(m) | 1,5 | 2,3 | 3,0 | 3,8 | 4,5 | 5,3 | ||
| dB(A) | <20 | <20 | 24 | 28 | 34 | 40 | ||
| 500 / 598 | 0,0266 | m³/h | 192 | 287 | 383 | 479 | 574 | 670 |
| Pa | 4 | 9 | 17 | 26 | 38 | 52 | ||
| L(m) | 1,9 | 2,8 | 3,7 | 4,6 | 5,6 | 6,5 | ||
| dB(A) | <20 | 22 | 30 | 42 | 44 | 47 | ||
| 600 / 598 | 0,0374 | m³/h | 269 | 404 | 538 | 673 | 808 | 942 |
| Pa | 4 | 10 | 17 | 27 | 39 | 53 | ||
| L(m) | 2,2 | 3,3 | 4,4 | 5,5 | 6,6 | 7,7 | ||
| dB(A) | <20 | 22 | 30 | 37 | 42 | 45 |

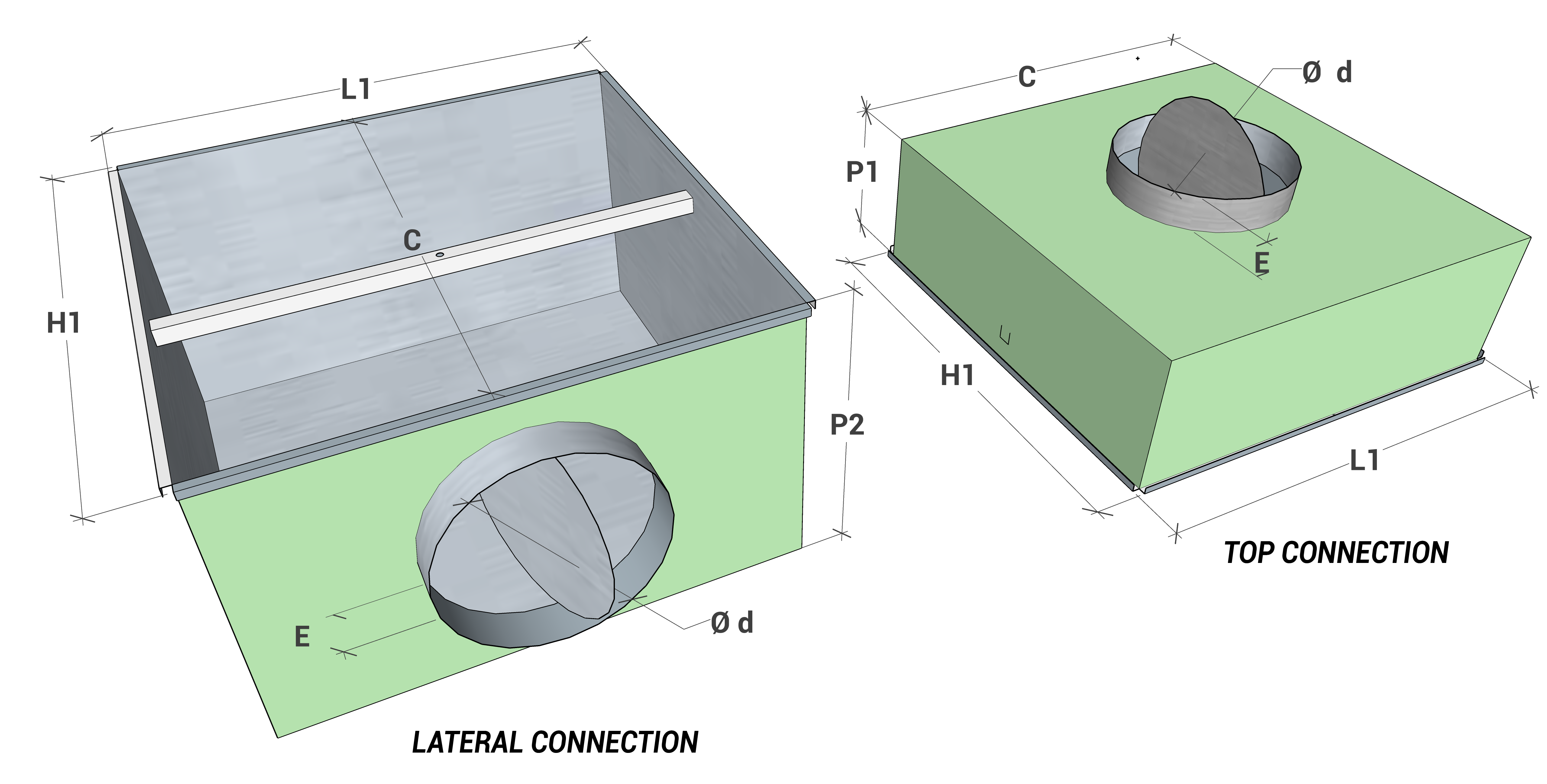

Plenum dimension
All dimensions are expressed in mm
| Models plenum | Compatible diffuser type | Dimensioni esterne L1 x H1 | Ø d | P1 | P2 | 〼 C | E |
| 300 | EDE-FB 300 / 598 | 292x292 | 146 | 200 | 250 | 260 | 50 |
| 400 | EDE-FB 400 / 598 | 392x392 | 198 | 200 | 300 | 360 | 50 |
| 500 | EDE-FB 500 / 598 | 492x492 | 198 | 200 | 300 | 460 | 50 |
| 600 | EDE-FB 300 / 598 | 592x592 | 248 | 200 | 350 | 560 | 50 |
| EDE-FB 400 / 598 | |||||||
| EDE-FB 500 / 598 | |||||||
| EDE-FB 600 / 598 |
Price list
| Models | 300 / 598 | 400 / 598 | 500 / 598 | 600 / 598 |
| euro | euro | euro | euro | |
| EDE-FB | 87,73 | 89,17 | 91,21 | 92,99 |
Price list for plenum with lateral connection
For plenum with top connection, price on request
| Models | Descrizione | 300 | 400 | 500 | 600 |
| euro | euro | euro | euro | ||
| EPZ-EDE-FB | Plenum Box in galv.steel for diffuser | 76,51 | 90,96 | 106,02 | 124,93 |
| EPI-EDE-FB | Plenum zincato ISOLATO con serranda e ponte di fissaggio | 90,23 | 110,52 | 130,16 | 153,14 |
| VITE E TAPPINO | artDDD4000200 | ||||
