EDCF Circular diffusers with perforated front plate

Description

Circular diffusers for ceiling installation with perforated front plate.

Characteristics

Material: steel.
Finish: painted white RAL 9010.
Installation: by means of non-visible screws.

Use

Thanks to its special construction, it is a very versatile diffuser.
Recommended for both supply and exhaust air.
It can be supplied with various accessories that guarantee optimal diffuser operation.

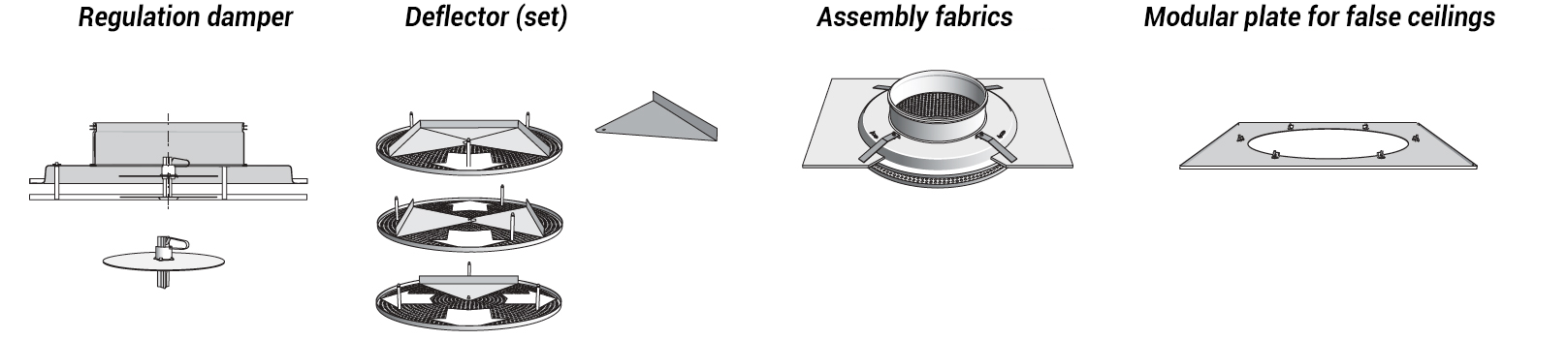

Accessories

- EPZ-DC galvanised plenum;
- EPI-DC insulated plenum;
- EDZ regulation damper;
- directional deflectors;
- mounting brackets;
- plate for false ceilings to install the diffuser on a modular false ceiling 600mm x 600mm

Dimensions

All dimensions are expressed in mm

Models	Ød	ØD	ØU (dimensione del foro)	effective section	peso
Models	mm	mm	mm	m²	Kg
125	125	240	200	0,018	0,8
160	160	300	260	0,023	1,2
200	200	360	320	0,03	1,7
250	250	460	420	0,042	2,2
315	315	540	500	0,058	3,2
400	400	540	500	0,066	3,4

Operating data

Vk: effective speed (m/s)
m³/h: flow rate
Pa: pressure drops in Pascal
L(m): air throw in metres calculated on ceiling installation, terminal velocity 0.20 m/s
dB(A): noise level

Models	Vk	2,5	3	3,5	4	5
125	m³/h	162	194	227	259	324
	L(m)	1,6	1,8	2,1	2,4	2,9
	Pa	11	15	21	29	45
	dB(A)	32	35	40	43	50
160	m³/h	207	248	290	331	414
	L(m)	1,7	2,1	2,4	2,7	3,4
	Pa	8	13	16	21	32
	dB(A)	25	32	35	38	45
200	m³/h	270	324	378	432	540
	L(m)	2,1	2,4	2,8	3,3	3,9
	Pa	6	9	13	17	26
	dB(A)	<20	20	27	32	40
250	m³/h	378	454	529	605	756
	L(m)	2,4	2,9	3,3	3,7	5
	Pa	6	9	12	16	23
	dB(A)	<20	<20	25	32	38
315	m³/h	522	626	731	835	1044
	L(m)	3	3,5	4	4,6	5,7
	Pa	6	8	11	14	21
	dB(A)	<20	<20	22	28	38
400	m³/h	594	713	832	950	1188
	L(m)	2.9	3.5	4	4.5	5.4
	Pa	4	5	8	9	13
	dB(A)	<20	<20	<20	21	26

Accessories

Plenum EPZ-DC EPI-DC

All measurements are expressed in mm.

Models	L	H	P	ØA2 Diffusore	ØB2 Tubo flessibile o rigido	C2	D2
125	200	200	200	127	125	70	100
160	250	250	250	162	155	70	100
200	300	300	300	202	195	70	100
250	350	350	350	252	245	70	100
315	400	400	400	317	310	70	100
400	500	500	500	402	395	70	100

Price list

Models	diffusore EDCF	Serranda di taratura EDZ	Deflettori	Staffe di montaggio	Piastra per controsoffitti	plenum zincato	PLENUM ISOLATO
	diffusore EDCF	Serranda di taratura EDZ	Deflettori	Staffe di montaggio	Piastra per controsoffitti	EPZ-DC	EPI-DC
	euro	euro	euro	euro	euro	euro	euro
125	196,86	45,26	42,19	50,45	187,46	56,76	83,93
160	206,77	61,19	44,21	50,45	187,46	63,14	85,27
200	246,39	65,02	52,65	50,45	187,46	71,86	96,61
250	336,77	72,67	57,79	52,83	187,46	95,57	123,97
315	368,97	83,51	82,54	52,83	187,46	107,56	139,61
400	396,21	94,34	84,38	52,83	187,46	142,45	183,34
